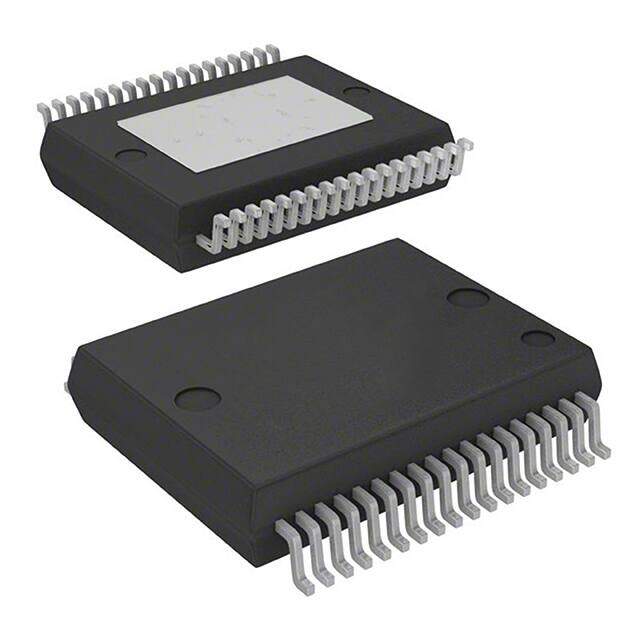

L9959T-TR-D
RoHS
RoHS compliant
RoHS compliantPackage 36-BSSOP (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Full, Half-Bridge Drivers
Description
IC H-BRIDGE HIGH SIDE 36PSSOP
PDF
/
Buying Options
Total Price: USD $4.15
Unit Price: USD $4.1477
≥1 USD $4.1477
≥10 USD $3.40385
≥100 USD $3.29745
≥500 USD $3.19105
≥1000 USD $3.08465
Inventory: 1364
Minimum: 1
-
+
Technical Details
Technical
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number L9959
Interface SPI
Output Configuration Half Bridge (2)
Voltage - Load 5V~28V
Current - Output / Channel 3A
Fault Protection Over Temperature, Short Circuit
Load Type Inductive, Capacitive, Resistive
Peak Reflow Temperature (Cel) NOT SPECIFIED
Voltage - Supply 4.5V~5.5V
Technology PMOS
HTS Code 8542.39.00.01
Applications General Purpose
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Compliance
RoHS Status ROHS3 Compliant
Physical
Package / Case 36-BSSOP (0.295, 7.50mm Width) Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 30 Weeks
