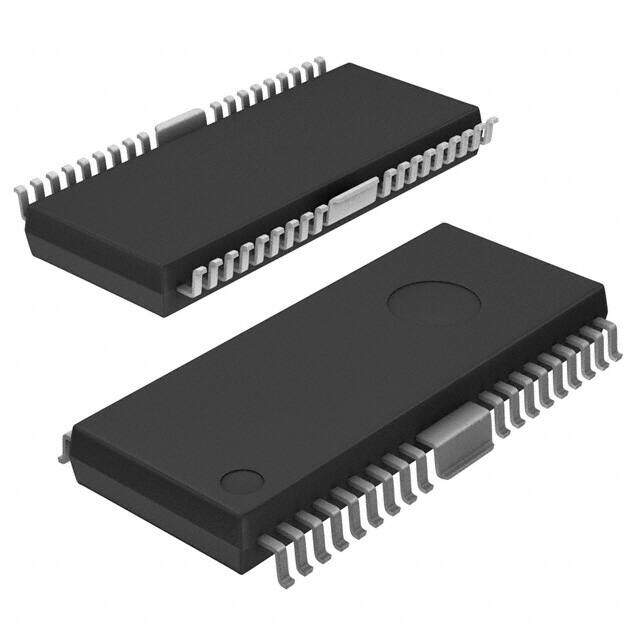

BA5956FM-E2
RoHS
RoHS compliant
RoHS compliantPackage 36-SOP (0.295, 7.50mm Width) + 2 Heat Tabs
Category Integrated Circuits (ICs) / PMIC - Full, Half-Bridge Drivers
Description
Over Temperature UVLO Tape & Reel (TR) DUAL BA5956 bridge driver 12V 2.4mm -35C~85C TA
PDF
/
Buying Options
Total Price: USD $6.68
Unit Price: USD $6.6785
≥1 USD $6.6785
≥10 USD $5.4796
≥100 USD $5.3086
≥500 USD $5.1376
≥1000 USD $4.9666
Inventory: 1337
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Length 18.5mm
Height Seated (Max) 2.4mm
Technical
Load Type Inductive
Drive Type OPTICAL
Fault Protection Over Temperature, UVLO
Logic Function AND
Output Configuration Half Bridge (10)
Interface Logic
Number of Channels 5
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G36
Pin Count 36
Base Part Number BA5956
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.8mm
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 4.5V~14V
Technology Bipolar
HTS Code 8542.39.00.01
Applications DC Motors, General Purpose
Number of Terminations 36
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -35°C~85°C TA
Physical
Number of Pins 38
Package / Case 36-SOP (0.295, 7.50mm Width) + 2 Heat Tabs
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Tin
