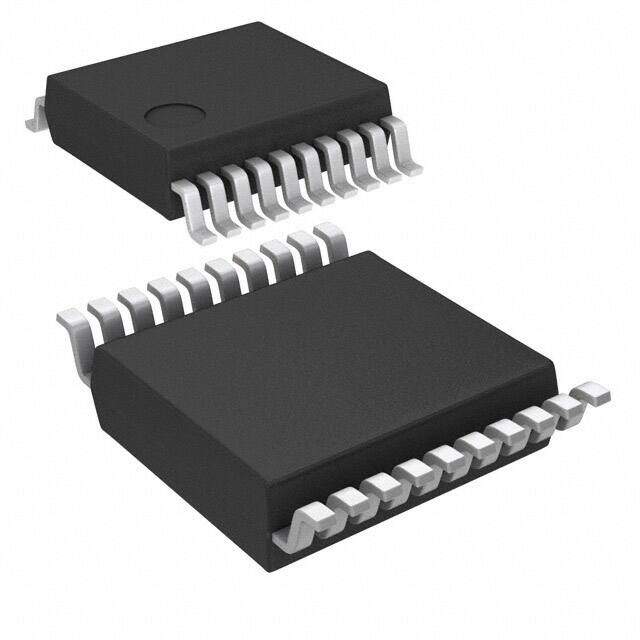

LV8014T-MPB-E image
Favorite
LV8014T-MPB-E image
Favorite
RoHS
RoHS RoHS compliant
Package 24-TFSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / PMIC - Full, Half-Bridge Drivers
Description ROHS3Compliant Logic Obsolete Surface Mount Half Bridge (4) Driver -20C~75C TA 750mOhm 2V~7V 1.4A
PDF
/
Inventory: 4305
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Load Type Inductive
Current - Peak Output 2.5A
Rds On (Typ) 750mOhm
Fault Protection Over Temperature
Current - Output / Channel 1.4A
Voltage - Load 2V~7V
Output Configuration Half Bridge (4)
Interface Logic
Voltage - Supply 2.7V~5.5V
Technology DMOS
Applications DC Motors, General Purpose
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Packaging Tube
Operating Temperature -20°C~75°C TA

Physical

Supplier Device Package 24-TSSOP
Package / Case 24-TFSOP (0.173, 4.40mm Width)
Mounting Type Surface Mount
