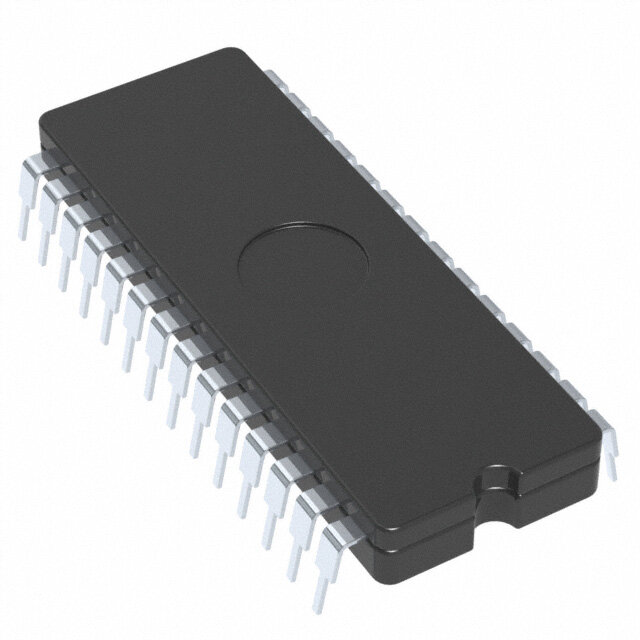

TC835CPI
RoHS
RoHS compliant
RoHS compliantPackage 28-DIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / PMIC - Display Drivers
Description
A/D 4.5Digits Tube TC835 Matte Tin (Sn) display driver 1mA 6V 36.83mm 0C~70C
PDF
/
Inventory: 2444
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 28-DIP (0.600, 15.24mm)
Number of Pins 28
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Published 2002
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Voltage - Supply 4V~6V
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TC835
Pin Count 28
Qualification Status Not Qualified
Output Voltage 4.4V
Operating Supply Voltage 6V
Number of Elements 1
Configuration 7 Segment
Interface BCD
Operating Supply Current 1mA
Power Dissipation 30mW
Converter Type ADC, DUAL-SLOPE
Number of Analog In Channels 1
Output Bit Code BINARY CODED DECIMAL
Display Type LED
Dual Supply Voltage 5V
Negative Supply Voltage-Nom -5V
Digits or Characters A/D 4.5 Digits
Dimensions
Height Seated (Max) 5.08mm
Length 36.83mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
