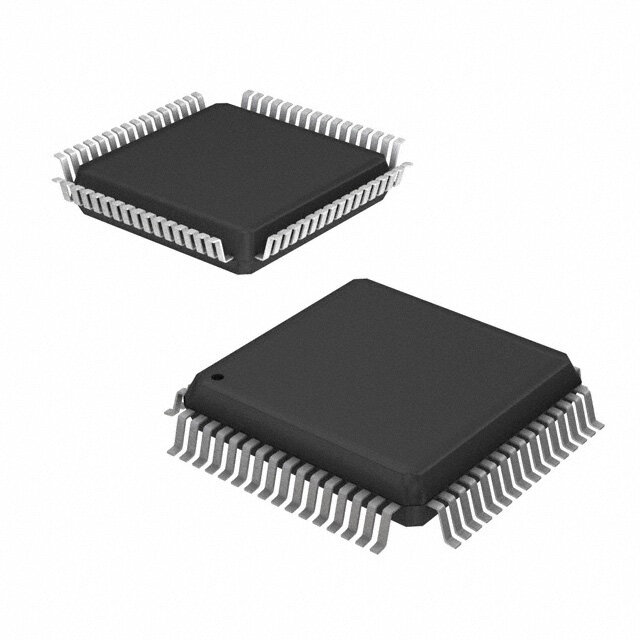

TC7135CBU
RoHS
RoHS compliant
RoHS compliantPackage 64-BQFP
Category Integrated Circuits (ICs) / PMIC - Display Drivers
Description
A/D 4.5Digits Tube TC7135 Matte Tin (Sn) display driver 1mA 5V 14mm 0C~70C
PDF
/
Inventory: 4242
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 14mm
Length 14mm
Height Seated (Max) 3.15mm
Technical
Digits or Characters A/D 4.5 Digits
Negative Supply Voltage-Nom -5V
Output Format PARALLEL, 4 BITS
Analog Input Voltage-Max 2V
Display Type LED
Linearity Error-Max (EL) 0.005%
Output Bit Code BINARY CODED DECIMAL
Number of Analog In Channels 1
Converter Type ADC, DUAL-SLOPE
Number of Bits 4
Power Dissipation 30mW
Operating Supply Current 1mA
Interface BCD
Configuration 7 Segment
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 64
Base Part Number TC7135
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.8mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 4V~6V
Subcategory Analog to Digital Converters
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Published 2004
Packaging Tube
Operating Temperature 0°C~70°C
Physical
Number of Pins 64
Package / Case 64-BQFP
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
