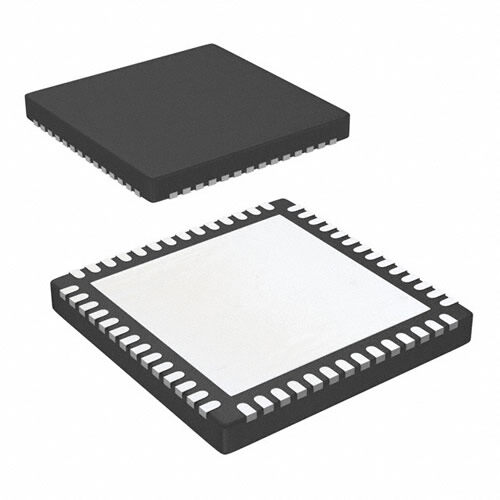

TPS65811RTQRG4
RoHS
/
Package VQFN
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description
Contains Lead RoHS Compliant INDUSTRIAL Surface Mount IC (Function) 85C 8mm 16.5V 1.5A
PDF
/
Buying Options
Total Price: USD $5.8
Unit Price: USD $5.800312
≥1 USD $5.800312
≥10 USD $5.471991
≥100 USD $5.162259
≥500 USD $4.870045
≥1000 USD $4.59438
Inventory: 1125
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case VQFN
Number of Pins 56
Weight 200.005886mg
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
Number of Terminations 56
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Power Management Circuits
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Pin Count 56
Operating Supply Voltage 18V
Supply Voltage-Max (Vsup) 16.5V
Power Supplies 4.3/16V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 4.35V
Number of Channels 9
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Current - Output 1.5A
Adjustable Threshold YES
Voltage - Output 3.3V
Dimensions
Height Seated (Max) 1mm
Length 8mm
Width 8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
