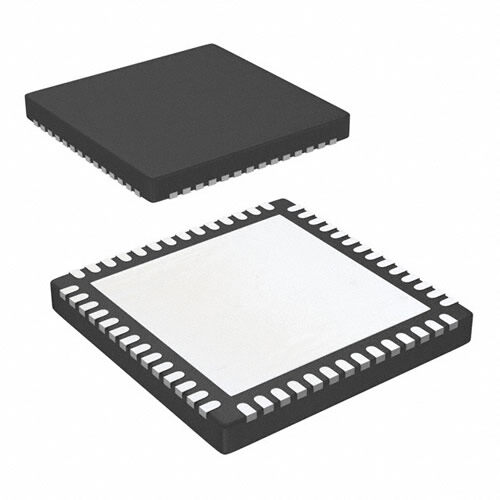

TPS65800RTQRG4
RoHS
/
Package VQFN EP
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description
Contains Lead RoHS Compliant INDUSTRIAL Surface Mount battery management 85C 8mm 16.5V
PDF
/
Buying Options
Total Price: USD $10.73
Unit Price: USD $10.7293
≥1 USD $10.7293
≥10 USD $8.80365
≥100 USD $8.52815
≥500 USD $8.2536
≥1000 USD $7.9781
Inventory: 1181
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case VQFN EP
Number of Pins 56
Weight 197.908021mg
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
Number of Terminations 56
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Power Management Circuits
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Pin Count 56
Power Supplies 1.8/3.3V
Temperature Grade INDUSTRIAL
Number of Channels 8
Max Supply Voltage 16.5V
Min Supply Voltage 4.35V
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Adjustable Threshold YES
Voltage - Output 4.6V
Dimensions
Height Seated (Max) 1mm
Length 8mm
Width 8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
