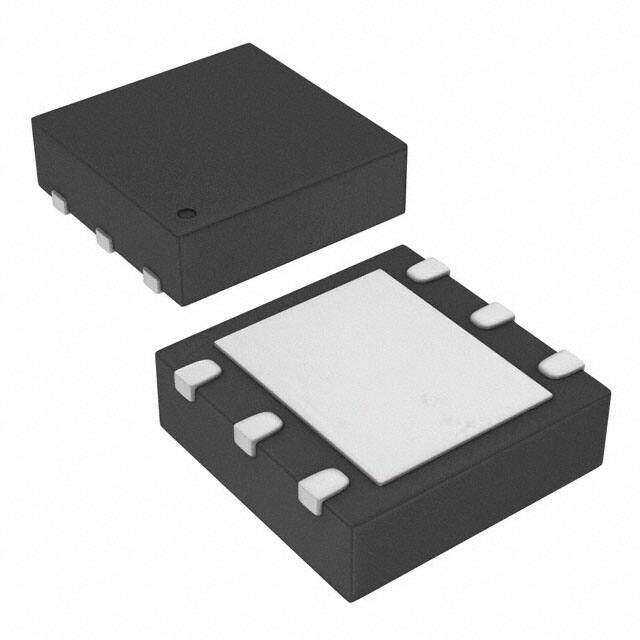

BQ26100DRPR image
Favorite
BQ26100DRPR image
Favorite

BQ26100DRPR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 6-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description ACTIVE (Last Updated: 6days ago) DUAL Tape & Reel (TR) 8542.39.00.01 battery management 50muA 5V 3mm -40C~85C TA
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.4168
≥1 USD $1.4168
Inventory: 1455
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Thickness 950μm
Width 3mm
Length 3mm
Height 1mm

Technical

Logic Function OR
Min Input Voltage 2.5V
Adjustable Threshold NO
Output Current 1mA
Operating Supply Current 50μA
Min Supply Voltage 2.5V
Max Supply Voltage 5V
Interface SDQ
Number of Channels 1
Qualification Status Not Qualified
Function Battery Authorization
Base Part Number BQ26100
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.95mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Subcategory Power Management Circuits
HTS Code 8542.39.00.01
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA

Physical

Number of Pins 6
Surface Mount YES
Package / Case 6-VDFN Exposed Pad
Mounting Type Surface Mount
Contact Plating Gold

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
