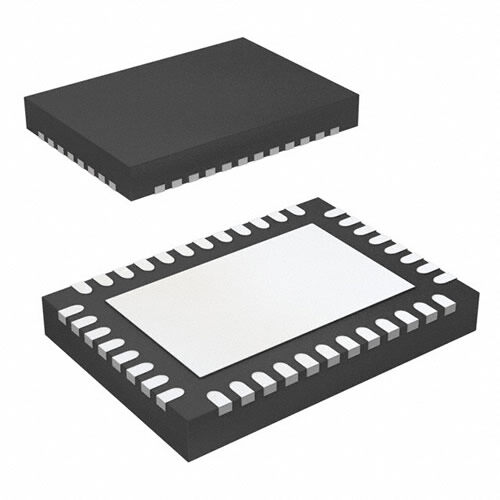

BQ24730RGFTG4
RoHS
/
Package VQFN
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description
ALSO OPERATE IN VOLTAGE ADJUSTABLE MODE FROM 12.6TO 16.8 QUAD Tape & Reel (TR) 8542.39.00.01 battery management 4.5mA 8V 345kHz 5mm
PDF
/
Inventory: 6583
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 5mm
Length 7mm
Height Seated (Max) 1mm
Technical
Switching Frequency-Max 345kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Input Voltage (Min) 8V
Voltage - Output 16.8V
Current - Output 4.5mA
Analog IC - Other Type BATTERY CHARGE CONTROLLER
Min Supply Voltage 0V
Max Supply Voltage 24V
Temperature Grade INDUSTRIAL
Input Voltage-Nom 16.8V
Pin Count 40
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
HTS Code 8542.39.00.01
Additional Feature ALSO OPERATE IN VOLTAGE ADJUSTABLE MODE FROM 12.6 TO 16.8
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 40
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Physical
Number of Pins 40
Package / Case VQFN
Mount Surface Mount
Alternative Model
