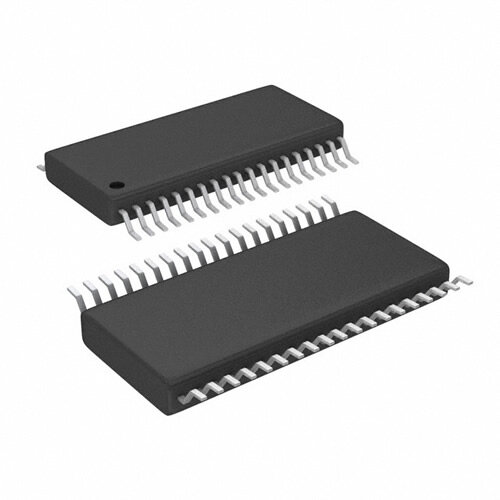

BQ2084DBTG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description
Contains Lead RoHS Compliant OTHER GULL WING battery management 85C 4.4mm 100kHz 6.3V
PDF
/
Buying Options
Total Price: USD $36.08
Unit Price: USD $36.077378
≥1 USD $36.077378
≥10 USD $34.035273
≥100 USD $32.108753
≥500 USD $30.291268
≥1000 USD $28.576672
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 4.4mm
Length 9.7mm
Height 1.15mm
Technical
Max Input Voltage 6.3V
Voltage - Output 14.4V
Adjustable Threshold YES
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Number of Channels 1
Temperature Grade OTHER
Operating Supply Voltage 3.3V
Number of Outputs 5
Pin Count 38
Frequency 100kHz
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Power Management Circuits
Min Operating Temperature -20°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 38
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Physical
Weight 124.000814mg
Number of Pins 38
Package / Case TSSOP
Mount Surface Mount
