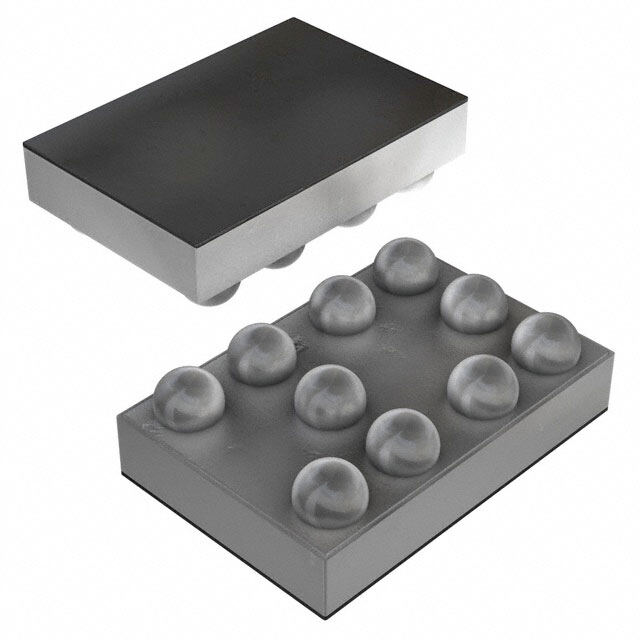

STC3115IJT
RoHS
RoHS compliant
RoHS compliantPackage 10-WFBGA, CSPBGA
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description
ACTIVE (Last Updated: 7months ago) BOTTOM Digi-Reel? STC3115 battery management 45muA 4.5V 655mum -40C~85C TA
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8128
≥1 USD $1.8128
≥10 USD $1.62536
≥100 USD $1.53296
≥500 USD $1.306096
≥1000 USD $1.226368
≥3000 USD $1.073072
Inventory: 956
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 655μm
Technical
Ambient Temperature Range High 85°C
Max Junction Temperature (Tj) 150°C
Adjustable Threshold NO
Nominal Supply Current 45μA
Operating Supply Current 45μA
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Min Supply Voltage 2.7V
Max Supply Voltage 4.5V
Interface I2C
Number of Channels 1
Output Voltage 4.1V
Number of Outputs 1
Function Battery Monitor
Base Part Number STC3115
Terminal Pitch 0.4mm
Supply Voltage 3.6V
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Power Management Circuits
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series OptimGauge?
Packaging Digi-Reel?
Operating Temperature -40°C~85°C TA
Physical
Manufacturer Package Identifier CSP_8116384_optionH
Number of Pins 10
Package / Case 10-WFBGA, CSPBGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 24 Weeks
