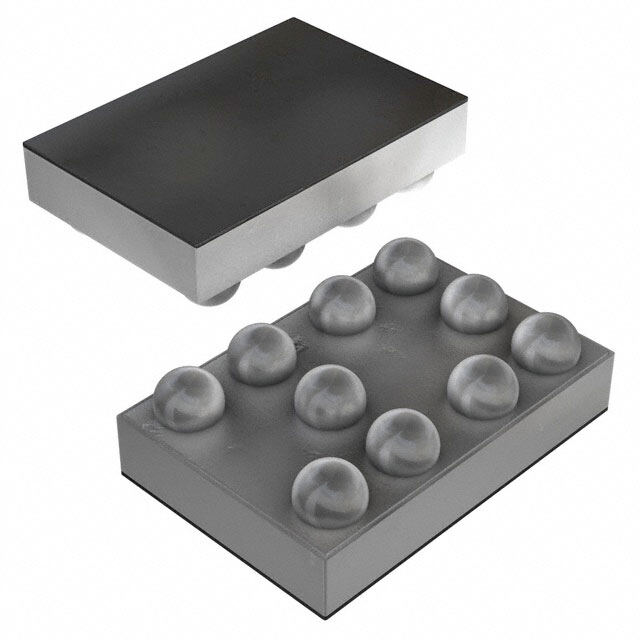

GG25LJ
RoHS
RoHS compliant
RoHS compliantPackage 10-WFBGA, FCCSP
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description
ACTIVE (Last Updated: 7months ago) SEATED HT-CALCULATED BOTTOM Cut Tape (CT) battery management 45muA 4.5V 1.37mm -40C~85C TA
PDF
/
Buying Options
Total Price: USD $3.57
Unit Price: USD $3.565076
≥1 USD $3.565076
≥10 USD $3.363273
≥100 USD $3.172909
≥500 USD $2.993302
≥1000 USD $2.823875
Inventory: 5013
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 1.37mm
Length 2.01mm
Height Seated (Max) 0.705mm
Technical
Adjustable Threshold YES
Operating Supply Current 45μA
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Min Supply Voltage 2.7V
Max Supply Voltage 4.5V
Interface I2C
Number of Channels 1
Output Voltage 4.35V
Function Battery Monitor
JESD-30 Code R-PBGA-B10
Base Part Number GG25
Terminal Pitch 0.4mm
Supply Voltage 3.6V
Terminal Form BALL
Terminal Position BOTTOM
HTS Code 8542.39.00.01
Additional Feature SEATED HT-CALCULATED
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series OptimGauge?
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 12
Package / Case 10-WFBGA, FCCSP
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 24 Weeks
