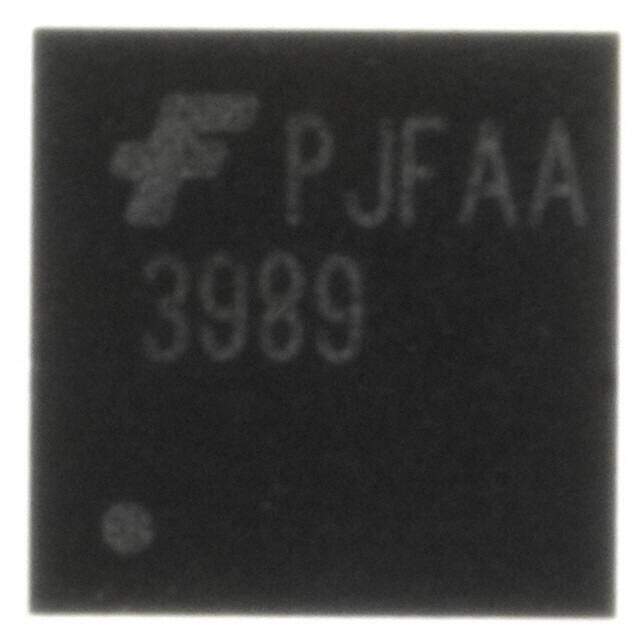

FAN3989MLP8X
RoHS
RoHS compliant
RoHS compliantPackage 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Battery Management
Description
ACTIVE (Last Updated: 3days ago) DUAL Tape & Reel (TR) e4 battery management 1.2mA 20V 3mm -40C~85C TA
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
≥3000 USD $0.5377
Inventory: 16344
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 3mm
Length 3mm
Height 750μm
Technical
Fault Protection Over/Under Voltage
Max Input Voltage 20V
Min Input Voltage 2.7V
Adjustable Threshold NO
Operating Supply Current 1.2mA
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Min Supply Voltage 2.7V
Max Supply Voltage 20V
Interface USB
Number of Channels 1
Power Supplies 5V
Operating Supply Voltage 5V
Qualification Status Not Qualified
Number of Outputs 1
Function Battery Monitor
Base Part Number FAN3989
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 1.5A
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Subcategory Power Management Circuits
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Resistance 67MOhm
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Weight 49mg
Number of Pins 8
Package / Case 8-WDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
