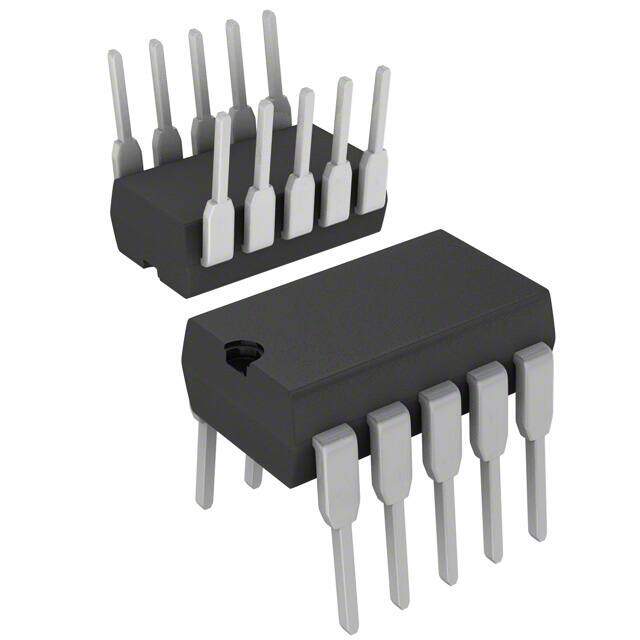

VIPER38LE
RoHS
RoHS compliant
RoHS compliantPackage 10-SDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - AC DC Converters, Offline Switchers
Description
VIPER38 ACTIVE (Last Updated: 6months ago) Current Limiting Over Temperature Over Voltage Short Circuit Tube dc ac converter 800V 20W 60kHz 3.5mA
PDF
/
Buying Options
Total Price: USD $1.41
Unit Price: USD $1.40695
≥1 USD $1.40695
≥10 USD $1.1552
≥100 USD $1.1191
≥500 USD $1.083
≥1000 USD $1.0469
Inventory: 42259
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Voltage - Start Up 14V
Voltage - Breakdown 800V
Output Isolation Isolated
Isolation Non-Isolated
Max Duty Cycle 80 %
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
Internal Switch(s) Yes
Frequency - Switching 60kHz
Topology Flyback
Output Power 20W
Voltage - Supply (Vcc/Vdd) 8.5V~23.5V
Operating Supply Current 3.5mA
Analog IC - Other Type SWITCHING CONTROLLER
Number of Outputs 1
Base Part Number VIPER38
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Max Power Dissipation 20W
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VIPer? plus
Packaging Tube
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 10
Package / Case 10-SDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Factory Lead Time 12 Weeks
