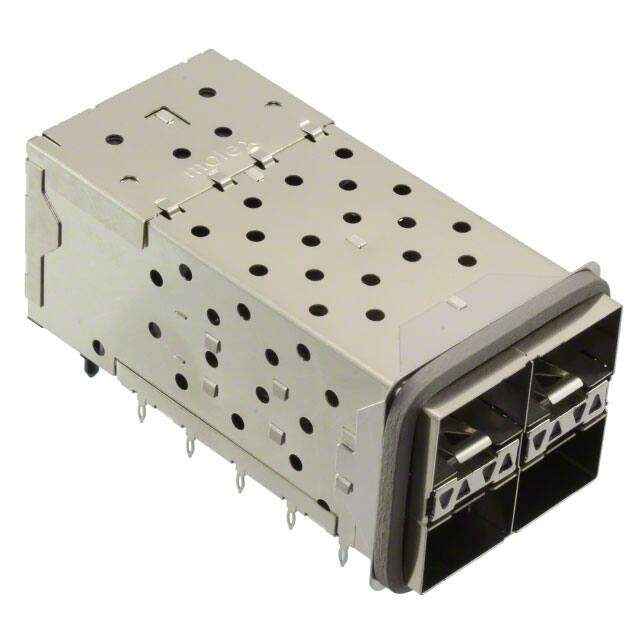

0760915002

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Pluggable Connectors
Description Conn SFP+ F 80 POS 1.6mm Press Fit RA Thru-Hole 80 Terminal 4 Port Tray
PDF
/
Inventory: 7084
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole, Right Angle
Shell Material POLYCARBONATE/THERMOPLASTIC
Housing Material Polymer

Technical

Packaging Tray
Series 76091
JESD-609 Code e3
Feature Board Guide, EMI Shielded, Light Pipe
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type SFP+
Number of Positions 80 (20 x 4)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Female
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 1.6mm
Total Number of Contacts 80
Orientation Right Angle
Depth 63.25mm
Current Rating 500mA
Contact Finish Gold
Empty Shell NO
Number of Circuits 80
Max Voltage Rating (AC) 120V
Connector Style Receptacle with Cage, Ganged (2x2)
Number of Ports 4

Dimensions

Length 33.32mm
Contact Finish Thickness 30.0μin 0.76μm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
