DSC6121JL2B-0170
RoHS
RoHS compliant

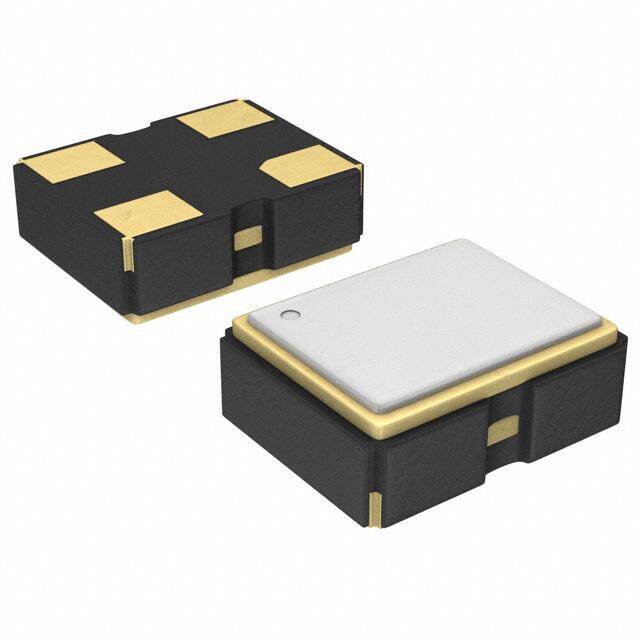

RoHS compliantPackage 4-VLGA
Category Crystals, Oscillators, Resonators / Pin Configurable/Selectable Oscillators
Description
RoHS Compliant MEMS e3 Tube Pin Configurable Oscillator 2ns -40C~105C 1.71V~3.63V 3mA Typ
PDF
/
Inventory: 1529
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 0.035 0.89mm
Technical
Frequency - Output 1 12MHz 50MHz
Frequency Adjustment-Mechanical NO
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Physical Dimension 2.5mm x 2.0mm x 0.89mm
Current - Supply (Max) 3mA Typ
Base Resonator MEMS
Output CMOS
Frequency Stability ±25ppm
Reach Compliance Code compliant
Voltage - Supply 1.71V~3.63V
Terminal Finish Matte Tin (Sn)
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series DSC61XXB
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Mounting Feature SURFACE MOUNT
Surface Mount YES
Package / Case 4-VLGA
