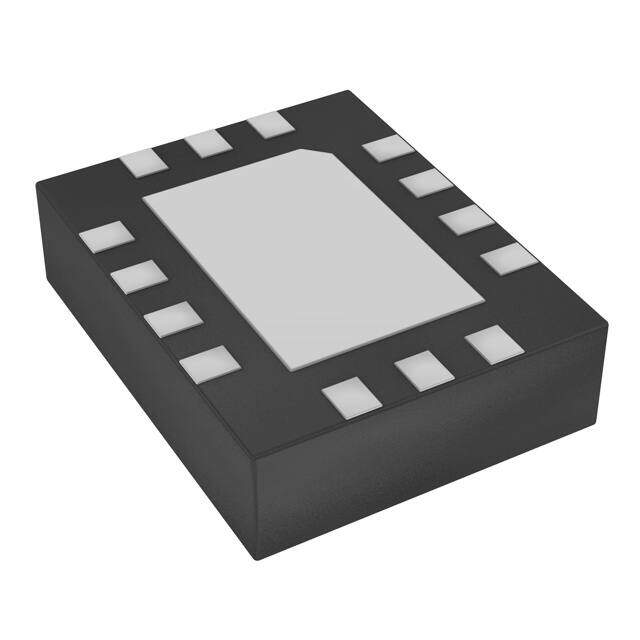

DSC2010FI1-A0023T image
Favorite
DSC2010FI1-A0023T image
Favorite

DSC2010FI1-A0023T

Microchip Technology
RoHS
RoHS RoHS compliant
Package 14-VFQFN Exposed Pad
Category Crystals, Oscillators, Resonators / Pin Configurable/Selectable Oscillators
Description Programmable Oscillators Low-Jitter CMOS -40-85C, 50ppm
PDF
/
Inventory: 2341
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 2.5mm
Length 3.2004mm
Height 0.035 0.90mm

Technical

Frequency - Output 1 4.096MHz 11.2896MHz
Max Supply Current 35mA
Load Capacitance 15pF
Min Supply Voltage 2.25V
Max Supply Voltage 3.6V
Current - Supply (Disable) (Max) 23mA
Current - Supply (Max) 35mA
Base Resonator MEMS
Function Enable/Disable
Output LVCMOS
Frequency Stability ±50ppm
Frequency 170MHz
Voltage - Supply 2.25V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type XO (Standard)
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series DSC2010
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Package / Case 14-VFQFN Exposed Pad
