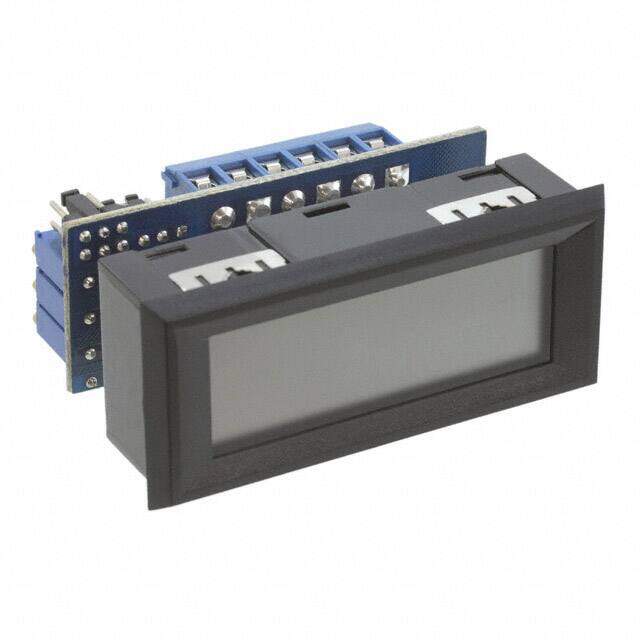

DK194P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Industrial Automation and Controls / Panel Meters
Description
PROCESS METER 4-20MA LCD PNL MT
PDF
/
Inventory: 6201
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Snap in
Mounting Type Panel Mount
Technical
Operating Temperature 0°C~50°C
Published 2012
Series DK191 EPIC Loop
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Temperature Coefficient 100 ppm/°C
Type Process Meter
Max Operating Temperature 50°C
Min Operating Temperature 0°C
Voltage - Supply Loop Power 24VDC Backlight
Termination Style Screw Terminal
Panel Cutout Dimensions Rectangular - 61.00mm x 25.40mm
Accuracy 0.1 %
Display Type LCD - Red Characters, Backlight
Number of Characters Per Row 3.5
Measuring Range 4 ~ 20mA
Dimensions
Display Characters - Height 0.449 11.40mm
Compliance
RoHS Status RoHS Compliant
