DK192
RoHS
RoHS compliant
RoHS compliantPackage /
Category Industrial Automation and Controls / Panel Meters
Description

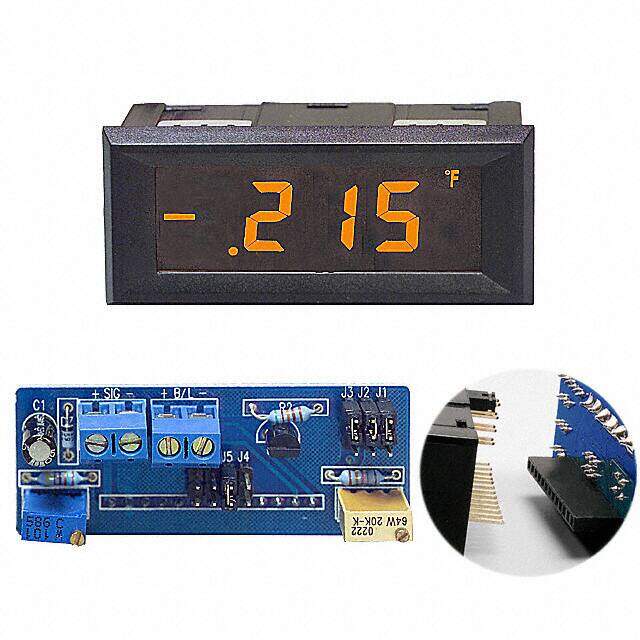

PROCESS METER 4-20MA LCD PNL MT
PDF
/
Inventory: 8159
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Snap in
Mounting Type Panel Mount
Technical
Operating Temperature 0°C~50°C
Published 2002
Series DK191 EPIC Loop
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Temperature Coefficient 100 ppm/°C
Type Process Meter
Voltage - Supply Loop Power 24VDC Backlight
Termination Style Screw Terminal
Number of Contacts 13
Panel Cutout Dimensions Rectangular - 61.00mm x 25.40mm
Nominal Supply Current 3.5mA
Accuracy 0.1 %
Display Type LCD - Amber Characters, Backlight
Number of Characters Per Row 3.5
Measuring Range 4 ~ 20mA
Dimensions
Display Characters - Height 0.449 11.40mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
