Category Optoelectronics / Panel Indicators, Pilot Lights
Description

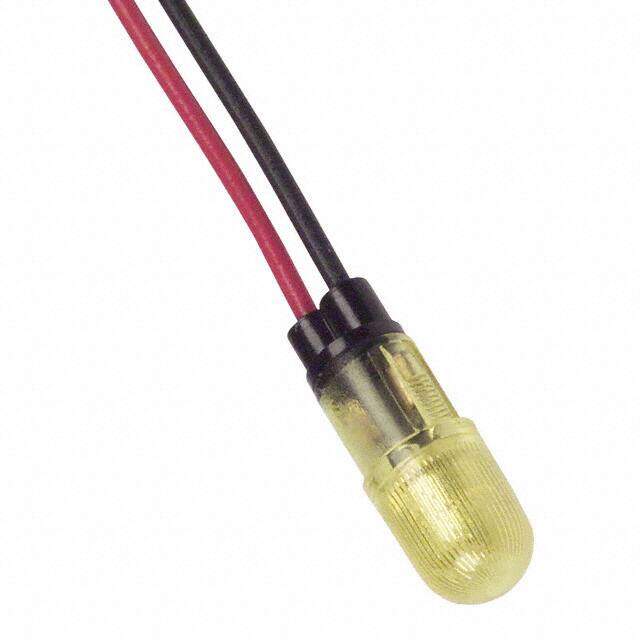

LED YELLOW 3/16" HOLE PANEL MNT
PDF
/
Inventory: 9059
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Packaging Bulk
Published 2011
Series 5210F
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Wire
Type LED
HTS Code 8541.40.20.00
Number of Functions 1
Reach Compliance Code unknown
Current Rating 20mA
Operating Temperature (Max) 100°C
Operating Temperature (Min) -20°C
Panel Cutout Dimensions 0.19 (4.83mm)
Configuration SINGLE
Voltage 2.1V
Current 30mA
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 5.33mm Dia
Luminous Intensity 20 mcd
Lens Color Yellow
Overall Height 6.86mm
Peak Wavelength 585 nm
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
