RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

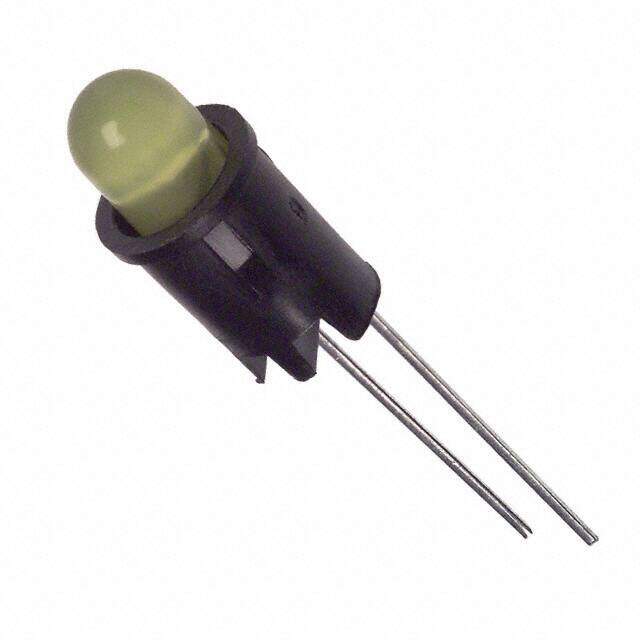

LED YELLOW 1/4" HOLE PANEL MOUNT
PDF
/
Inventory: 1261
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Panel Cutout Shape Round
Technical
Packaging Cut Tape
Published 2011
Series 5101H
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Wire Wrap
Type LED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Terminal Pitch 2.54mm
Current Rating 10mA
Termination Style Wire Wrap
Operating Temperature (Max) 100°C
Operating Temperature (Min) -20°C
Operating Supply Voltage 2.1V
Panel Cutout Dimensions 0.25 (6.35mm)
Configuration SINGLE
Current 60mA
Viewing Angle 50 deg
Forward Current 10mA
Lens Style Round with Domed Top
Forward Voltage 2.1V
Luminous Intensity 6.3 mcd
Millicandela Rating 6.3mcd
Wavelength - Peak 585nm
Lens Color Yellow
Overall Height 5.588mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Vf (Typ), If (Max)
