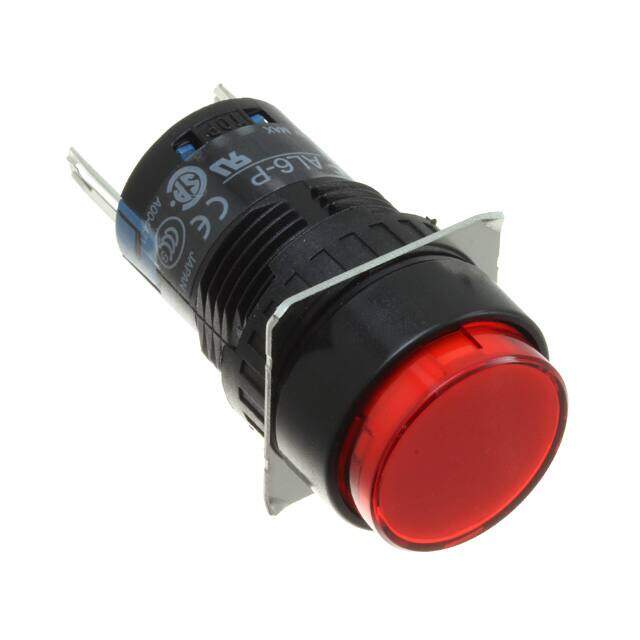

AL6M-P4P-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
16MM PILOT LIGHT RED
PDF
/
Buying Options
Total Price: USD $13.68
Unit Price: USD $13.6752
≥1 USD $13.6752
≥10 USD $12.15808
≥100 USD $11.24728
≥500 USD $10.42624
≥1000 USD $9.726992
≥3000 USD $9.119088
Inventory: 35
Minimum: 1
-
+
Technical Details
Compliance
Ratings AC/DC
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Actuator Diameter 18 mm
Lamp Color Red
Forward Voltage 24V
Lens Size 18.00mm Dia
Illumination Type Illuminated
Lens Style Round with Flat Top
Contact Current Rating 3A
Forward Current 9mA
Panel Cutout Dimensions 0.63 (16.00mm)
Operating Supply Voltage 24V
Termination Style Solder Lug
Ingress Protection IP65
Min Operating Temperature -25°C
Max Operating Temperature 55°C
Type LED
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series A6
Published 2005
Physical
Panel Cutout Shape Round
Mount Panel
Supply Chain
Factory Lead Time 4 Weeks
