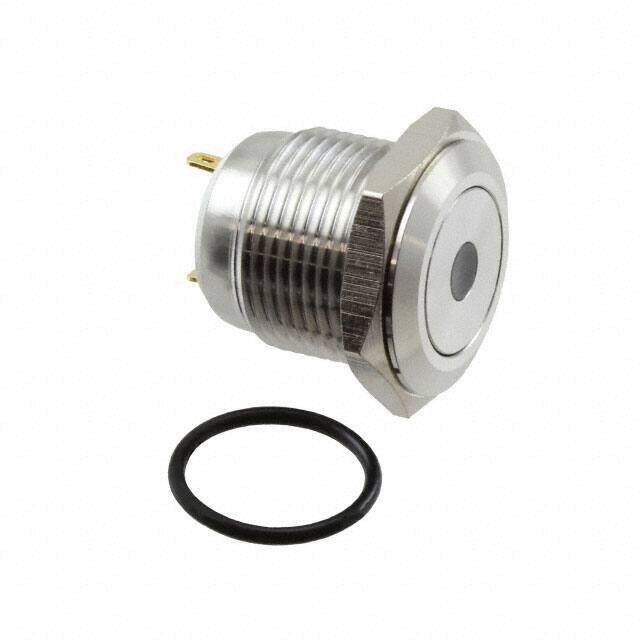

PV6F2PXSS-231
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PANEL INDICATOR GRN 2.8V
PDF
/
Buying Options
Total Price: USD $7.49
Unit Price: USD $7.487827
≥1 USD $7.487827
≥10 USD $7.063985
≥100 USD $6.664136
≥500 USD $6.286925
≥1000 USD $5.931058
Inventory: 1123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel
Insulation Material POLYAMIDE
Center Contact Plating SILVER
Center Contact Material SILVER ALLOY
Terminal Material BRASS
Panel Cutout Shape Round
End Contact Material SILVER ALLOY
End Contact Plating SILVER
Technical
Published 2014
Series PV6
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type LED
Ingress Protection IP65
Termination Style Solder Lug
Operating Temperature (Max) 55°C
Operating Temperature (Min) -20°C
Switch Function SPST
Panel Cutout Dimensions 0.63 (16.00mm)
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Voltage 2.8V
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 50000 Cycle(s)
Current 20mA
Lens Style Round with Flat Top
Lens Size 4.00mm Dia
Contact (DC) Max Rating R Load 2A@48VDC
Lamp Color Green
Contact Function OFF-(ON)
Actuator Travel 1.4986 mm
Switch Action MOMENTARY
Bushing Diameter 0.629 inch
Actuator Finish STAINLESS STEEL
Dimensions
Length - Termination 0.137 inch
Actuator Length 0.059 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
