6571703103F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

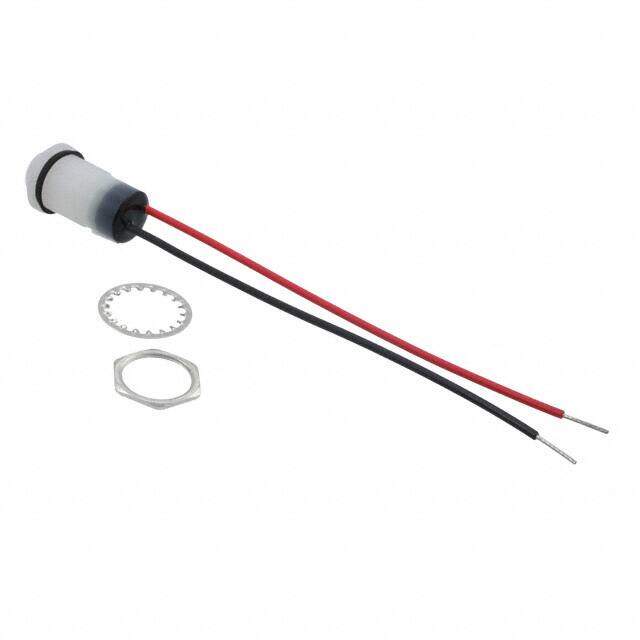

LED 17.46MM YELLOW DIFF PNL MNT
PDF
/
Buying Options
Total Price: USD $15.07
Unit Price: USD $15.065716
≥1 USD $15.065716
≥10 USD $14.212937
≥100 USD $13.408432
≥500 USD $12.649469
≥1000 USD $11.933459
Inventory: 1111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Published 2010
Series 657
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type LED
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67, NEMA 4X
Termination Style Wire Leads - 6 (152.40mm)
Operating Temperature (Max) 65°C
Operating Temperature (Min) -35°C
Panel Cutout Dimensions 0.69 (17.53mm)
Configuration SINGLE
Voltage 12V
Current 20mA
Lens Style Round with Flat Top
Lens Size 16.50mm Dia
Lens Transparency Diffused
Overall Height 9.02mm
Lamp Color Yellow
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
Alternative Model
