6073132340F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

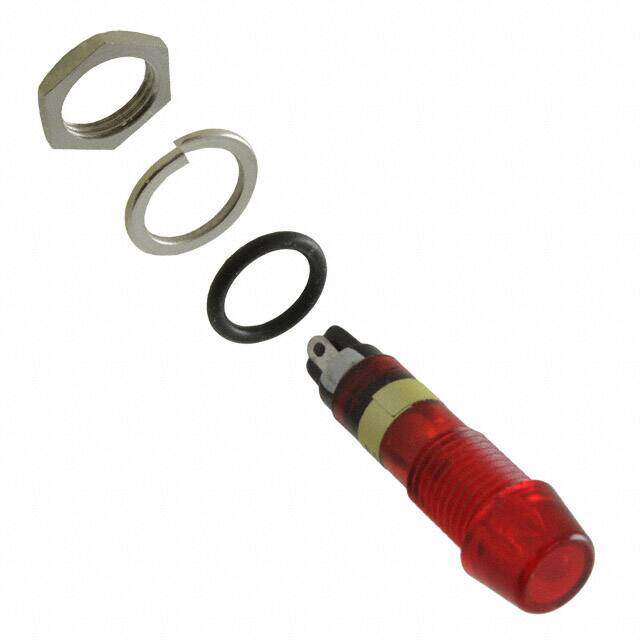

LED 7MM RED PMI 24V W GASKET
PDF
/
Buying Options
Total Price: USD $4.58
Unit Price: USD $4.5848
≥1 USD $4.5848
≥10 USD $3.24192
≥100 USD $2.6554
≥500 USD $2.053313
Inventory: 260
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Panel Cutout Shape Round
Technical
Published 2010
Series 607
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED
Terminal Finish Nickel (Ni)
HTS Code 8541.40.20.00
Ingress Protection IP66, NEMA 4X
Operating Temperature (Max) 85°C
Operating Temperature (Min) -30°C
Panel Cutout Dimensions 0.28 (7.11mm)
Voltage 24V
Current 15mA
Lens Style Round with Flat Top
Lens Size 6.80mm Dia
Millicandela Rating 20mcd
Overall Height 25.1mm
Lamp Color Red
Color@Wavelength Red
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
