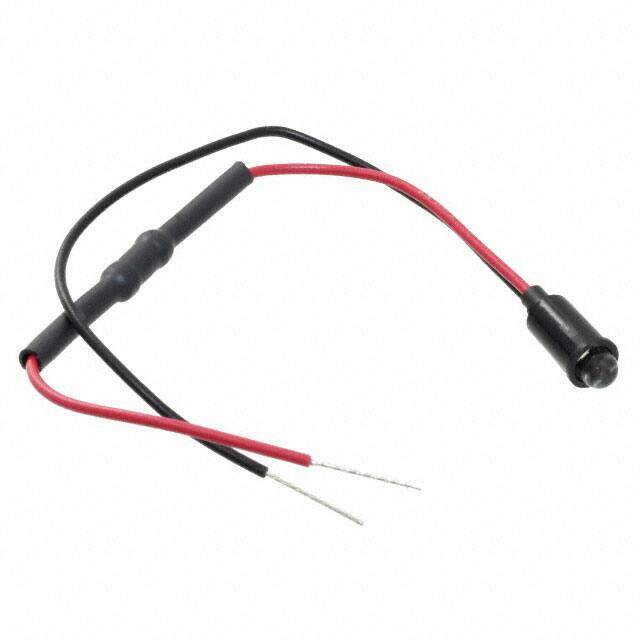

5596104003F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PMI SNAP-IN 24V RED 6"
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6256
≥1 USD $3.6256
≥10 USD $2.56608
≥100 USD $2.101968
≥500 USD $1.772038
≥1000 USD $1.625395
≥3000 USD $1.558181
Inventory: 290
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Technical
Lamp Color Red
Wavelength - Peak 635nm
Millicandela Rating 2100mcd
Luminous Intensity 2100.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Viewing Angle 15°
Current 20mA
Voltage 24V
Configuration SINGLE
Panel Cutout Dimensions 0.25 (6.35mm)
Operating Temperature (Min) -20°C
Operating Temperature (Max) 85°C
Termination Style Wire Leads - 6 (152.40mm)
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 559
Published 2015
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
