5595501007F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

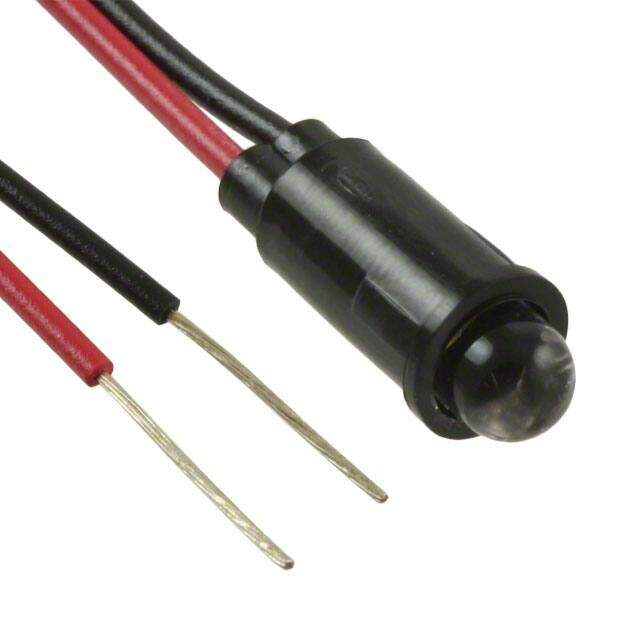

LED PMI SNAP-IN 635NM RED .250"
PDF
/
Buying Options
Total Price: USD $2.57
Unit Price: USD $2.5696
≥1 USD $2.5696
≥10 USD $1.71336
≥100 USD $1.318328
≥500 USD $1.024118
≥1000 USD $0.945912
Inventory: 396
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Series 559
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type LED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Termination Style Wire Leads - 14 (355.60mm)
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Panel Cutout Dimensions 0.25 (6.35mm)
Configuration SINGLE
Voltage 2.2V
Current 30mA
Viewing Angle 24°
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 125.0 mcd
Millicandela Rating 125mcd
Lens Transparency Clear
Wavelength - Peak 635nm
Lens Color Colorless
Overall Height 19.05mm
Lamp Color Red
Color@Wavelength Red
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
