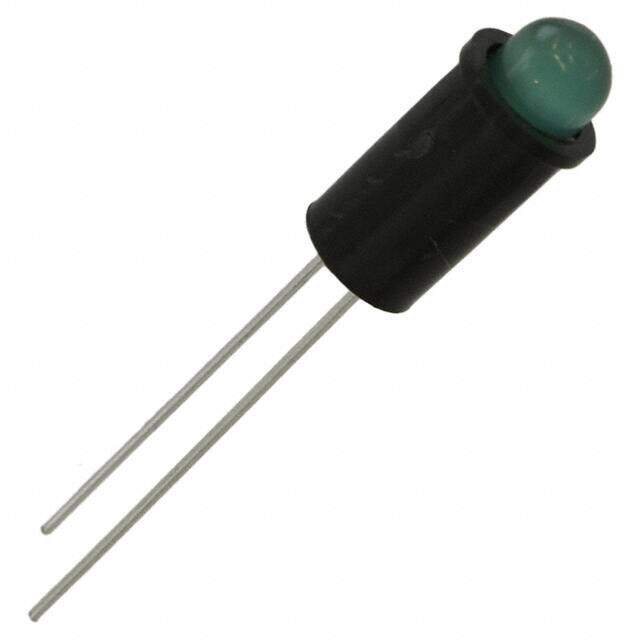

5591301001F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PMI SNAP-IN 565NM GRN .250"
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
≥10 USD $0.850784
≥100 USD $0.65472
≥500 USD $0.6512
Inventory: 850
Minimum: 1
-
+
Technical Details
Compliance
Ratings Vf (Typ), If (Max)
RoHS Status ROHS3 Compliant
Technical
Lamp Color Green
Overall Height 15.88mm
Wavelength - Peak 565nm
Lens Transparency Diffused
Millicandela Rating 1.8mcd
Luminous Intensity 1.8 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Viewing Angle 50°
Current 7mA
Voltage 1.8V
Configuration SINGLE
Panel Cutout Dimensions 0.25 (6.35mm)
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Termination Style Wire Wrap
Terminal Pitch 3.18mm
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 559
Published 2015
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 10 Weeks
