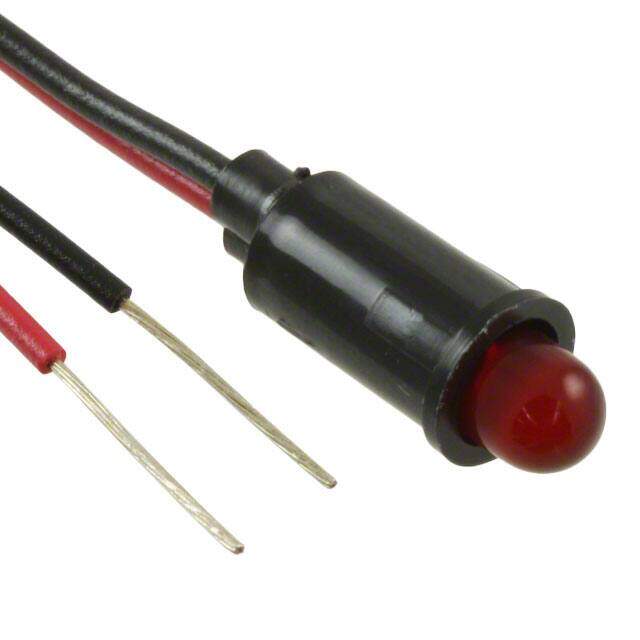

5591101003F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PMI SNAP-IN 635NM RED .250"
PDF
/
Buying Options
Total Price: USD $2.85
Unit Price: USD $2.85401
≥1 USD $2.85401
≥10 USD $2.692467
≥100 USD $2.540059
≥500 USD $2.396287
≥1000 USD $2.260646
Inventory: 1094
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Published 2015
Series 559
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type LED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Termination Style Wire Leads - 6 (152.40mm)
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Panel Cutout Dimensions 0.25 (6.35mm)
Configuration SINGLE
Voltage 1.7V
Current 7mA
Viewing Angle 50°
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 2.3 mcd
Millicandela Rating 2.3mcd
Lens Transparency Diffused
Wavelength - Peak 635nm
Overall Height 16mm
Lamp Color Red
Color@Wavelength Red
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
