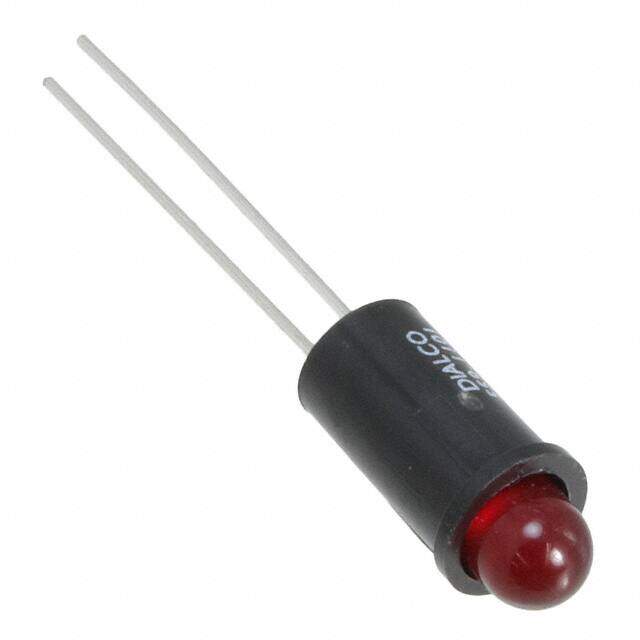

5591101001F

Dialight
RoHS
RoHS RoHS compliant
Package /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description LED PANEL RED DIFF 1.8V SNAP-IN
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.02608
≥100 USD $0.789712
≥500 USD $0.713891
≥1000 USD $0.613492
≥3000 USD $0.580034
Inventory: 182
Minimum: 1
-
+

Technical Details

Compliance

Ratings Vf (Typ), If (Max)
RoHS Status ROHS3 Compliant

Technical

Color@Wavelength Red
Lamp Color Red
Overall Height 15.88mm
Wavelength - Peak 635nm
Lens Transparency Diffused
Millicandela Rating 2mcd
Luminous Intensity 2.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Viewing Angle 50 deg
Current 2mA
Voltage 1.8V
Configuration SINGLE
Panel Cutout Dimensions 0.25 (6.35mm)
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 3.18mm
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 559
Published 2004

Physical

Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO

Supply Chain

Factory Lead Time 10 Weeks
