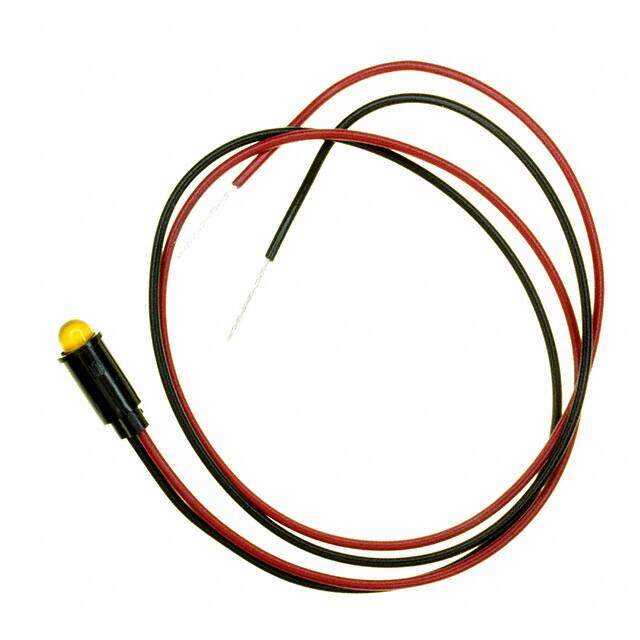

5590302007F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED SNAP-IN PANEL 5MM 5V YLW
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.508
≥1 USD $2.508
≥10 USD $1.67024
≥100 USD $1.285328
≥500 USD $0.998457
≥1000 USD $0.922214
Inventory: 250
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Technical
Lamp Color Yellow
Overall Height 16mm
Wavelength - Peak 583nm
Lens Transparency Diffused
Millicandela Rating 8mcd
Luminous Intensity 8.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Viewing Angle 60°
Current 12mA
Voltage 5V
Configuration SINGLE WITH BUILT-IN RESISTOR
Panel Cutout Dimensions 0.25 (6.35mm)
Operating Temperature (Min) -20°C
Operating Temperature (Max) 85°C
Termination Style Wire Leads - 14 (355.60mm)
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 559
Published 1998
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 10 Weeks
