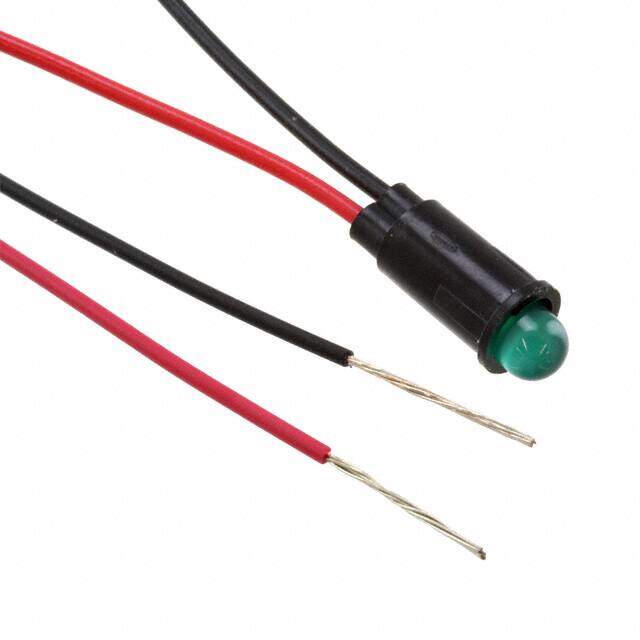

5590202003F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PANEL GRN DIFF 5V SNAP 6"LD
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.3848
≥1 USD $2.3848
≥10 USD $1.5884
≥100 USD $1.22232
≥500 USD $1.104963
≥1000 USD $0.949573
≥3000 USD $0.897776
Inventory: 649
Minimum: 1
-
+
Technical Details
Compliance
Ratings Vf (Typ), If (Max)
RoHS Status ROHS3 Compliant
Technical
Lamp Color Green
Overall Height 16mm
Wavelength - Peak 565nm
Lens Transparency Diffused
Millicandela Rating 8mcd
Luminous Intensity 8.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Viewing Angle 60 deg
Current 12mA
Voltage 5V
Configuration SINGLE WITH BUILT-IN RESISTOR
Panel Cutout Dimensions 0.25 (6.35mm)
Operating Temperature (Min) -20°C
Operating Temperature (Max) 85°C
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 559
Published 2009
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 10 Weeks
