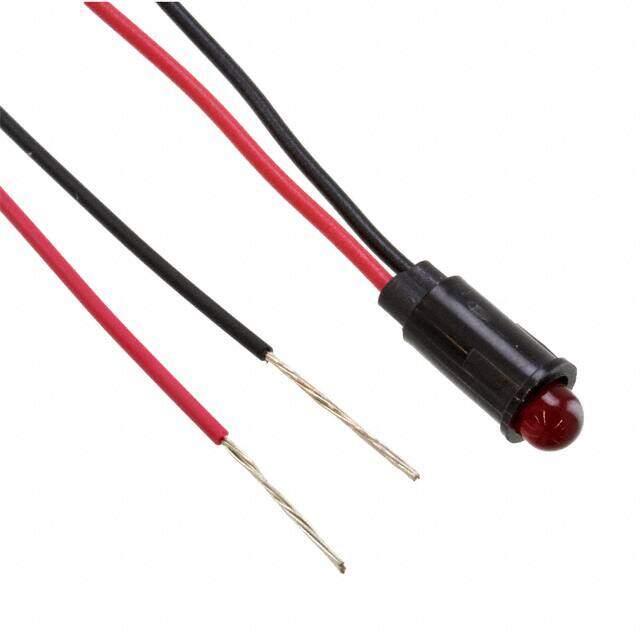

5590102003F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PANEL RED DIFF 5V SNAP 6"LD
PDF
/
Buying Options
Total Price: USD $2.48
Unit Price: USD $2.4816
≥1 USD $2.4816
≥10 USD $1.65352
≥100 USD $1.272656
≥500 USD $0.98868
≥1000 USD $0.913176
Inventory: 622
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Published 2009
Series 559
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type LED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Operating Temperature (Max) 85°C
Operating Temperature (Min) -20°C
Panel Cutout Dimensions 0.25 (6.35mm)
Configuration SINGLE WITH BUILT-IN RESISTOR
Voltage 5V
Current 13mA
Viewing Angle 60 deg
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 8.0 mcd
Millicandela Rating 2mcd
Lens Transparency Diffused
Wavelength - Peak 655nm
Overall Height 16mm
Lamp Color Red
Color@Wavelength Red
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
