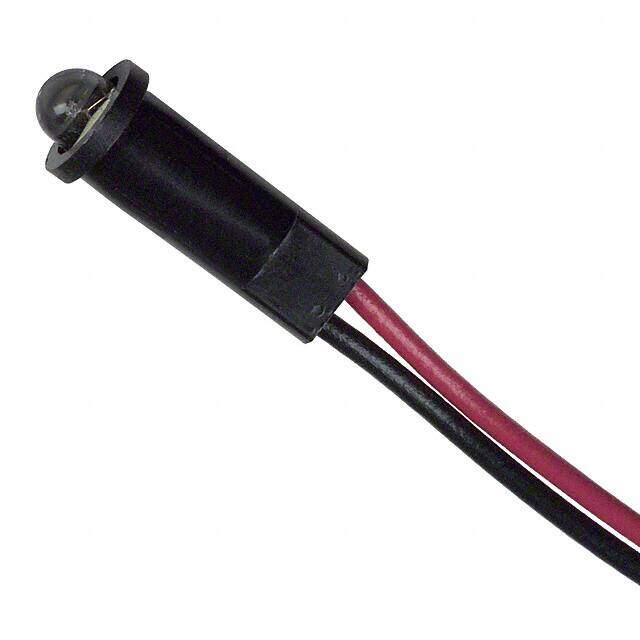

5586403007F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED 3MM WHITE CLR PANEL MOUNT
PDF
/
Buying Options
Total Price: USD $3.98
Unit Price: USD $3.9776
≥1 USD $3.9776
≥10 USD $2.81424
≥100 USD $2.305336
≥500 USD $1.782616
≥1000 USD $1.675388
Inventory: 561
Minimum: 1
-
+
Technical Details
Compliance
Ratings Vf (Typ), If (Max)
RoHS Status ROHS3 Compliant
Technical
T-code T-1
Lamp Color White
Overall Height 4.78mm
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 3000mcd
Luminous Intensity 850.0 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Viewing Angle 45°
Current 30mA
Voltage 3.3V
Configuration SINGLE
Panel Cutout Dimensions 0.16 (4.06mm)
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Termination Style Wire Leads - 14 (355.60mm)
Terminal Pitch 2.54mm
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 558
Published 2011
Physical
Panel Cutout Shape Round
Mounting Feature PANEL MOUNT
Surface Mount NO
Supply Chain
Factory Lead Time 10 Weeks
