5571703203
RoHS
/
Package /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

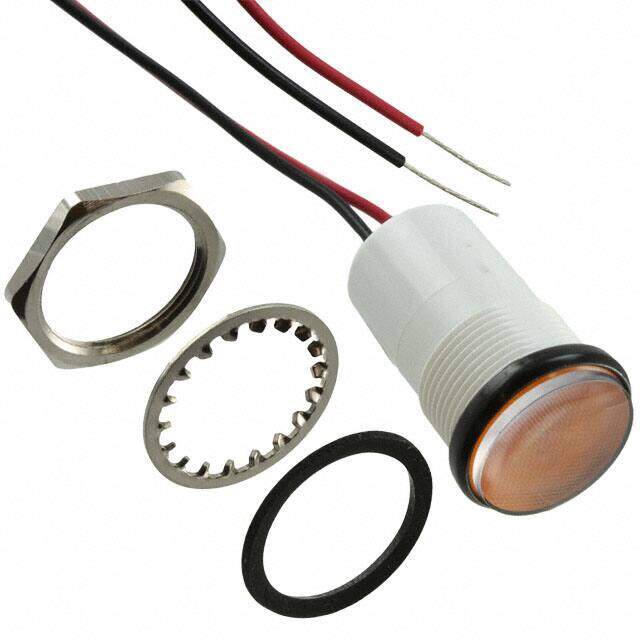

LED PNL MT 11/16" 12V WT YELLOW
PDF
/
Inventory: 7624
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Published 2010
Series 557
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type LED
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection Water Resistant
Termination Style Wire Leads - 0.50 (12.70mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -25°C
Panel Cutout Dimensions 0.69 (17.53mm)
Configuration SINGLE
Voltage 12V
Current 20mA
Lens Style Round with Flat Top
Lens Size 17.80mm Dia
Overall Height 8.9mm
Lamp Color Yellow
Compliance
RoHS Status Non-RoHS Compliant
Ratings DC
