192B1351
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

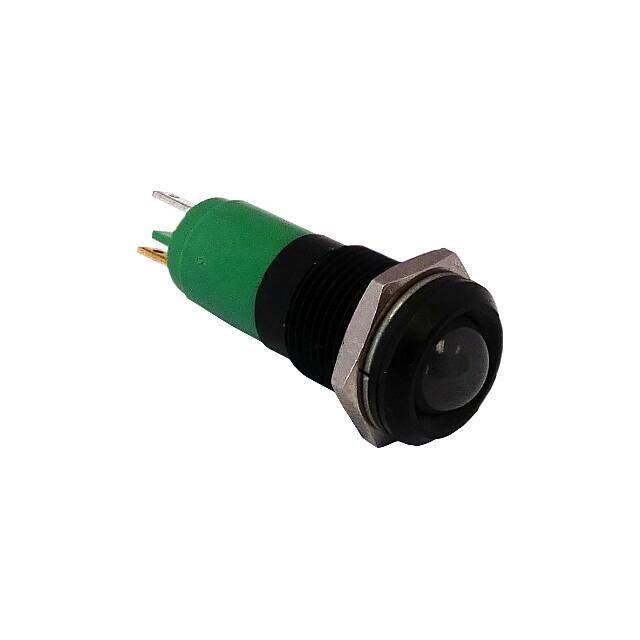

CML INNOVATIVE TECHNOLOGIES 192B1351LED Panel Mount Indicator, Black Chrome Bezel, Green, 14 mm, 24 V, 17 mA, 40 mcd, IP67
PDF
/
Buying Options
Total Price: USD $5.21
Unit Price: USD $5.2096
≥1 USD $5.2096
Inventory: 64
Minimum: 1
-
+
Technical Details
Physical
Mount Panel
Material Brass
Panel Cutout Shape Round
Technical
Part Status Active
Number of Terminations 2
Type LED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Termination Style Quick Connect - 0.354 (9.00mm)
Voltage - Rated AC 24V
Operating Temperature (Max) 60°C
Operating Temperature (Min) -20°C
Operating Supply Voltage 24V
Panel Cutout Dimensions 0.551 (14.00mm)
Configuration SINGLE
Current 18mA
Forward Current 17mA
Lens Style Round with Domed Top
Size 14mm
Forward Voltage 24V
Luminous Intensity 40 mcd
Millicandela Rating 40mcd
Wavelength - Peak 565 nm
Lens Color Green
Overall Height 5mm
T-code T-4
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AC/DC
