19210351
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

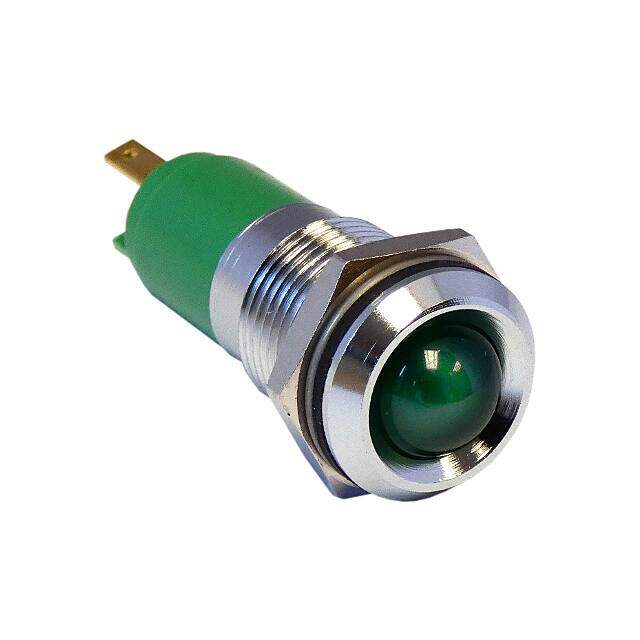

CML INNOVATIVE TECHNOLOGIES 19210351LED Panel Mount Indicator, Satin Chrome Bezel, Green, 14 mm, 24 VDC, 20 mA, 70 mcd, IP67
PDF
/
Buying Options
Total Price: USD $5.26
Unit Price: USD $5.256434
≥1 USD $5.256434
≥10 USD $4.958902
≥100 USD $4.678216
≥500 USD $4.413405
≥1000 USD $4.163596
Inventory: 9576
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 48mm
Height 2mm
Technical
T-code T-4
Lens Color Green
Wavelength - Peak 565 nm
Luminous Intensity 70 mcd
Forward Voltage 24V
Size 10mm
Lens Style Round with Domed Top
Forward Current 20mA
Life (Hours) 100 hours
Configuration SINGLE
Panel Cutout Dimensions 0.315 (8.00mm)
Operating Supply Voltage 24V
Approval Agency UL, VDE
Voltage - Rated AC 24V
Termination Style Quick Connect - 0.354 (9.00mm)
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Voltage - Rated 24V
Min Operating Temperature -25°C
Max Operating Temperature 60°C
Type LED
Number of Terminations 2
Part Status Active
Series 1921
Published 2001
Physical
Panel Cutout Shape Round
Dielectric Material Chrome
Material Brass
Mount Panel
