19050353
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

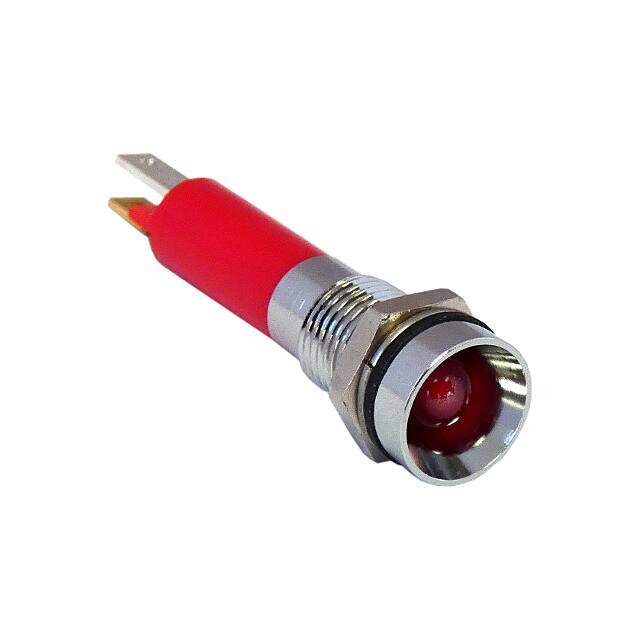

CML INNOVATIVE TECHNOLOGIES 19050353LED Panel Mount Indicator, Satin Chrome Bezel, Red, 8 mm, 24 VDC, 20 mA, 80 mcd, IP67
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8456
≥1 USD $3.8456
Inventory: 228
Minimum: 1
-
+
Technical Details
Physical
Mount Panel
Number of Pins 3
Dielectric Material Chrome
Panel Cutout Shape Round
Technical
Published 2001
Series 1905
Part Status Active
Number of Terminations 2
Type LED
Max Operating Temperature 60°C
Min Operating Temperature -25°C
Voltage - Rated 24V
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Quick Connect - 0.354 (9.00mm)
Voltage - Rated AC 24V
Approval Agency UL, VDE
Operating Supply Voltage 24V
Number of Elements 1
Panel Cutout Dimensions 0.315 (8.00mm)
Configuration SINGLE
Life (Hours) 100 hours
Viewing Angle 80 °
Forward Current 20mA
Lens Style Round with Flat Top
Size 5mm
Forward Voltage 24V
Luminous Intensity 80 mcd
Wavelength - Peak 660 nm
Lens Color Red
Dominant Wavelength 625 nm
Dimensions
Height 40.9956mm
Length 41mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings DC
