19040253
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

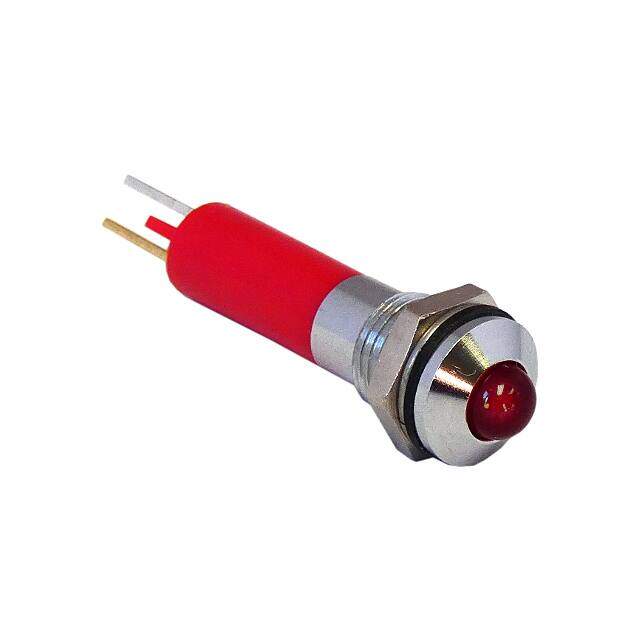

CML INNOVATIVE TECHNOLOGIES 19040253LED Panel Mount Indicator, Satin Chrome Bezel, Red, 8 mm, 12 VDC, 20 mA, 80 mcd, IP67
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8456
≥1 USD $3.8456
Inventory: 101
Minimum: 1
-
+
Technical Details
Physical
Mount Panel
Number of Pins 2
Dielectric Material Chrome
Panel Cutout Shape Round
Technical
Series 1904
Part Status Active
Number of Terminations 2
Type LED
Max Operating Temperature 60°C
Min Operating Temperature -25°C
Voltage - Rated DC 12V
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Quick Connect - 0.354 (9.00mm)
Voltage - Rated AC 12V
Approval Agency UL, VDE
Operating Supply Voltage 12V
Panel Cutout Dimensions 0.315 (8.00mm)
Configuration SINGLE
Life (Hours) 100 hours
Current 25mA
Forward Current 20mA
Lens Style Round with Domed Top
Size 5mm
Forward Voltage 12V
Luminous Intensity 80 mcd
Millicandela Rating 60mcd
Wavelength - Peak 660 nm
Lens Color Red
T-code T-1 3/4
Dimensions
Height 43.9928mm
Length 44mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings DC
