19010352
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

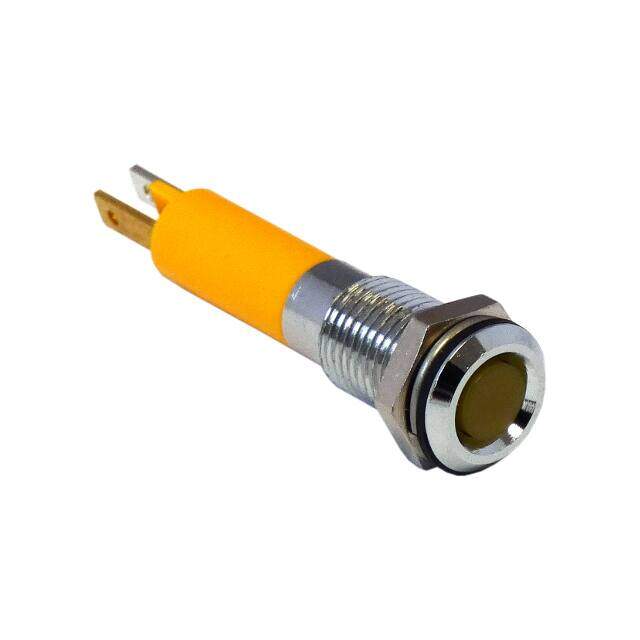

CML INNOVATIVE TECHNOLOGIES 19010352 LED Panel Mount Indicator, Satin Chrome Bezel, Yellow, 24 VDC, 8 mm, 20 mA, 8 mcd, IP67
PDF
/
Buying Options
Total Price: USD $3.57
Unit Price: USD $3.566011
≥1 USD $3.566011
≥10 USD $3.364161
≥100 USD $3.173732
≥500 USD $2.994087
≥1000 USD $2.824612
Inventory: 9023
Minimum: 1
-
+
Technical Details
Physical
Mount Panel
Panel Cutout Shape Round
Technical
Published 2001
Series 1901
Part Status Active
Number of Terminations 2
Type LED
Max Operating Temperature 60°C
Min Operating Temperature -25°C
Voltage - Rated 24V
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Quick Connect - 0.354 (9.00mm)
Voltage - Rated AC 24V
Approval Agency UL, VDE
Operating Supply Voltage 24V
Panel Cutout Dimensions 0.315 (8.00mm)
Configuration SINGLE
Life (Hours) 100 hours
Current 22mA
Viewing Angle 80 °
Forward Current 20mA
Lens Style Round with Flat Top
Size 5mm
Forward Voltage 24V
Luminous Intensity 8 mcd
Wavelength - Peak 590 nm
Lens Color Yellow
T-code T-1 3/4
Dimensions
Height 41.5036mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings DC
