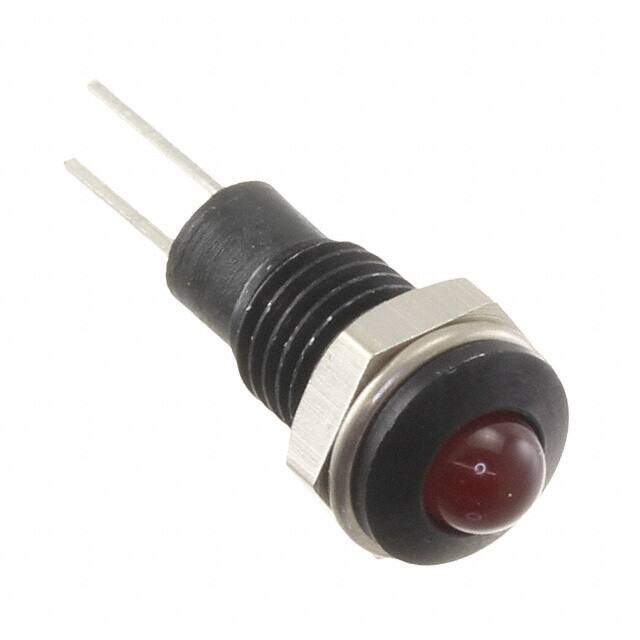

DX1119/RD

Bulgin
RoHS
RoHS RoHS compliant
Package /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description BULGIN DX1119/RD LED Panel Mount Indicator, Brass Bezel, Red, 6.1 mm, 2 VDC, 30 mA, 2.5 mcd, Not Rated
PDF
/
Buying Options
Total Price: USD $5.31
Unit Price: USD $5.313636
≥1 USD $5.313636
≥10 USD $5.012865
≥100 USD $4.72912
≥500 USD $4.461437
≥1000 USD $4.208902
Inventory: 3966
Minimum: 1
-
+

Technical Details

Compliance

Ratings Vf (Typ), If (Max)
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Length 9.6mm

Technical

Wavelength 635 nm
Reverse Voltage 5V
Lens Color Red
Millicandela Rating 2.5mcd
Luminous Intensity 1.5 mcd
Forward Voltage 2V
Lens Size 4.00mm Dia
Lens Style Round with Domed Top
Forward Current 30mA
Viewing Angle 120 °
Power Dissipation 105mW
Configuration SINGLE
Panel Cutout Dimensions 0.24 (6.10mm)
Number of Elements 1
Operating Supply Voltage 2V
Current Rating 30mA
Depth 8.32mm
Number of Functions 1
Voltage - Rated 2V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type LED
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk

Physical

Panel Cutout Shape Round
Number of Pins 2
Mount Panel

Supply Chain

Factory Lead Time 20 Weeks
