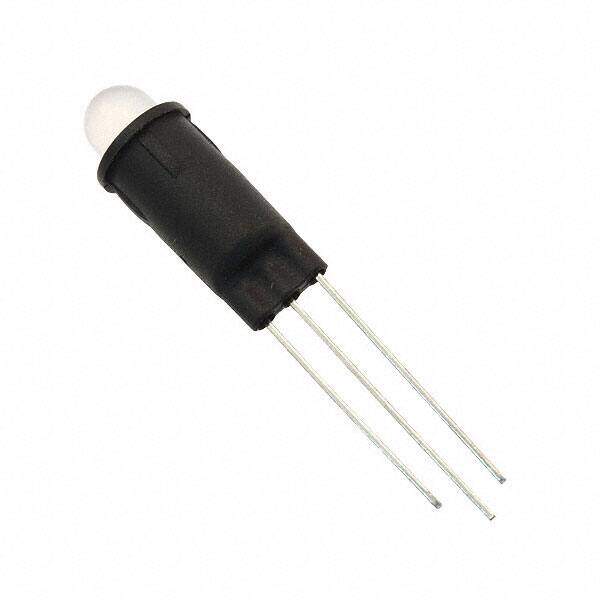

PM53-RY
RoHS
/
Package /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
INDICATOR, LED PANEL, 5MM RED/YELLOW, 2V - More Details
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704481
≥1 USD $0.704481
≥10 USD $0.664602
≥100 USD $0.626986
≥500 USD $0.5915
≥1000 USD $0.558021
Inventory: 1296
Minimum: 1
-
+
Technical Details
Compliance
Ratings Vf (Typ), If (Max)
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Lamp Color Red, Yellow
Lens Color White
Wavelength - Peak 625nm Red 590nm Yellow
Lens Transparency Diffused
Illumination Color Red, Yellow
Luminous Intensity 35 mcd
Forward Voltage 2V
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Forward Current 20mA
Viewing Angle 40°
Current 30mA Red 30mA Yellow
Voltage 2V Red 2V Yellow
Panel Cutout Dimensions 0.25 (6.35mm)
Reach Compliance Code unknown
Color Red, Yellow
Type LED
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series PM53
Published 2009
Physical
Panel Cutout Shape Round
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
