PM5-KAD
RoHS
/
Package 120
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

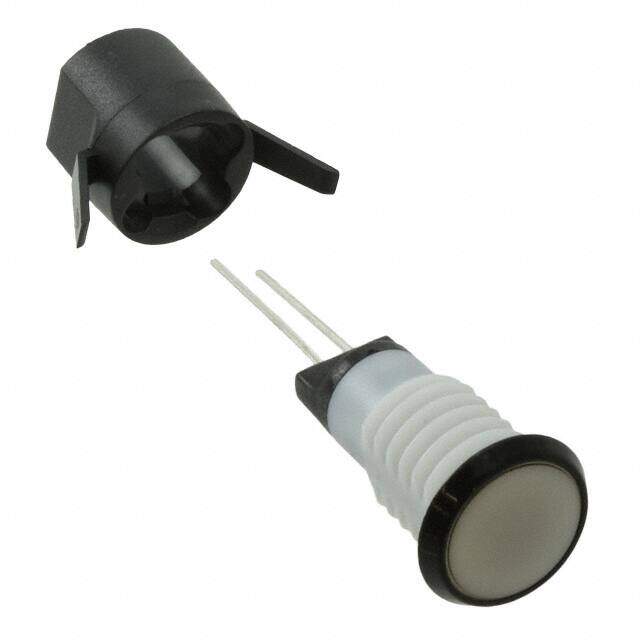

LED INDICATOR, 10MM, AMBER, 2V
PDF
/
Inventory: 2637
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Vf (Typ), If (Max)
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Technical
Lamp Color Amber
Lens Color White
Wavelength - Peak 605nm
Lens Transparency Diffused
Millicandela Rating 25mcd
Luminous Intensity 20 mcd
Forward Voltage 2V
Lens Size 9.70mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 120°
Panel Cutout Dimensions 0.39 (9.91mm)
Operating Supply Voltage 2V
Color Orange
Type LED
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series PM5
Published 2012
Physical
Panel Cutout Shape Round
Package / Case 120
Mount Panel
