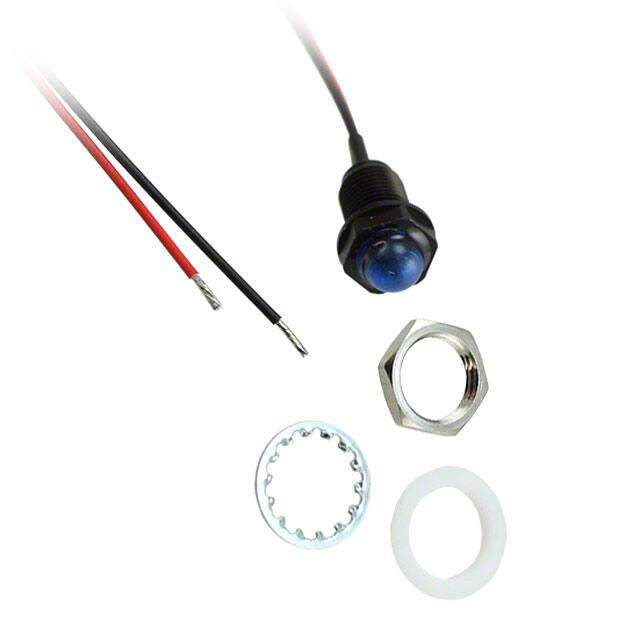

PM5-AP7B3.4V
RoHS
RoHS compliant
RoHS compliantPackage Aluminum
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
PANEL MOUNT ASSEMBLY BLUE, 8.5MM
PDF
/
Inventory: 5154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Panel Cutout Shape Round
Package / Case Aluminum
Technical
Packaging Bulk
Series PM5
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type LED
Ingress Protection IP67
Reach Compliance Code unknown
Termination Style Wire Leads - 5.9 (150.00mm)
Panel Cutout Dimensions 0.34 (8.64mm)
Voltage 3.4V
Current 20mA
Viewing Angle 160°
Lens Style Round with Domed Top
Lens Size 7.00mm Dia
Luminous Intensity 400 mcd
Lens Transparency Diffused
Wavelength - Peak 465nm
Lamp Color Blue
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
Supply Chain
Factory Lead Time 8 Weeks
