PM5-A5B12V
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

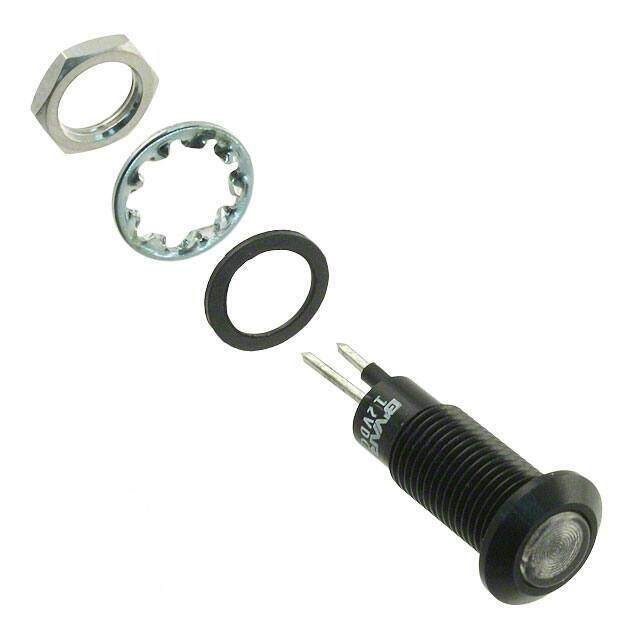

PANEL MOUNT ASSEM 6.35MM BLUE
PDF
/
Inventory: 904
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Technical
Lamp Color Blue
Wavelength - Peak 470nm
Lens Transparency Fresnel
Luminous Intensity 128 mcd
Lens Size 5.10mm Dia
Lens Style Round with Flat Top
Viewing Angle 120°
Current 20mA
Voltage 12V
Panel Cutout Dimensions 0.25 (6.35mm)
Termination Style PC Pin
Reach Compliance Code unknown
Ingress Protection IP67
Type LED
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PM5
Published 2011
Packaging Bulk
Physical
Panel Cutout Shape Round
Package / Case Metal
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
