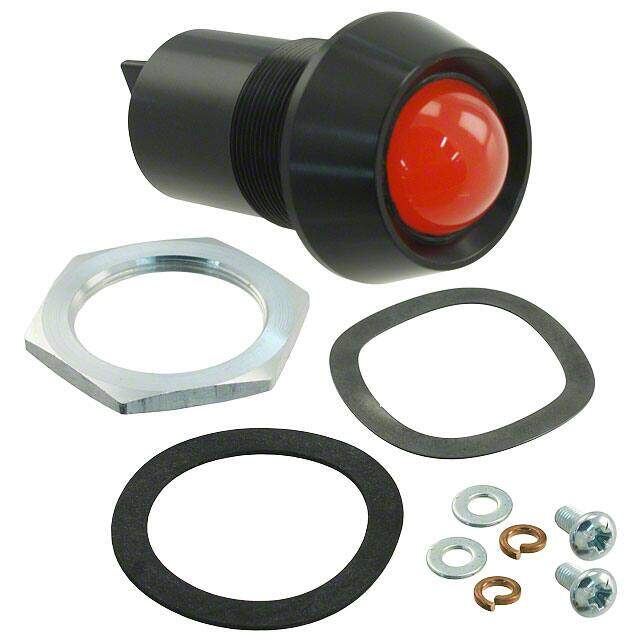

PM5-A20R24V
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
PANEL MOUNT ASSEM 25.4MM RED
PDF
/
Inventory: 9464
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Technical
Lamp Color Red
Wavelength - Peak 660nm
Lens Transparency Diffused
Luminous Intensity 250 mcd
Lens Size 20.00mm Dia
Lens Style Round with Domed Top
Viewing Angle 160°
Current 20mA
Voltage 24V
Panel Cutout Dimensions 1 (25.40mm)
Reach Compliance Code unknown
Ingress Protection IP67
Type LED
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PM5
Published 2011
Packaging Bulk
Physical
Panel Cutout Shape Round
Package / Case Metal
Supply Chain
Factory Lead Time 8 Weeks
