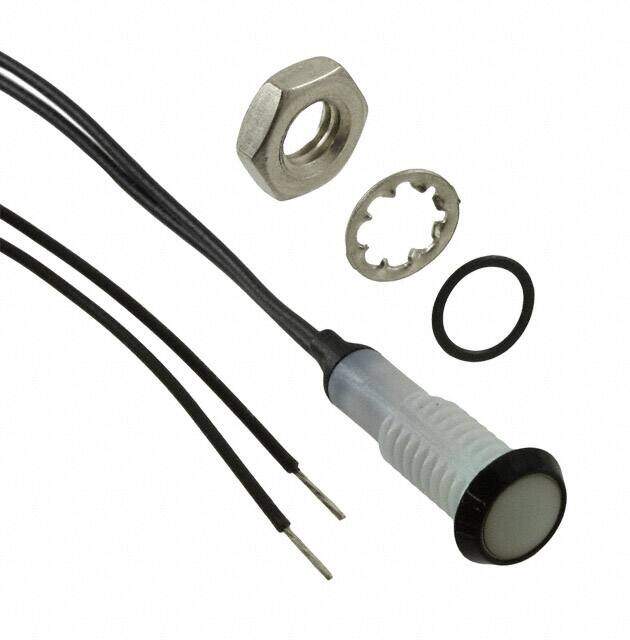

PM3-PBWDW12.0
RoHS
/
Package 120
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
PNL MNT BLUE 20MA W/WIRE: 12"
PDF
/
Inventory: 7070
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case 120
Panel Cutout Shape Round
Technical
Series PM3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type LED
Color Blue
Ingress Protection IP67
Termination Style Wire Leads - 12 (304.80mm)
Operating Supply Voltage 48V
Panel Cutout Dimensions 0.19 (4.83mm)
Voltage 8V~48V
Current 20mA
Viewing Angle 120°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 5.90mm Dia
Forward Voltage 48V
Luminous Intensity 200 mcd
Millicandela Rating 200mcd
Illumination Color Blue
Lens Transparency Diffused
Wavelength - Peak 470nm
Lens Color White
Lamp Color Blue
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings AC/DC
