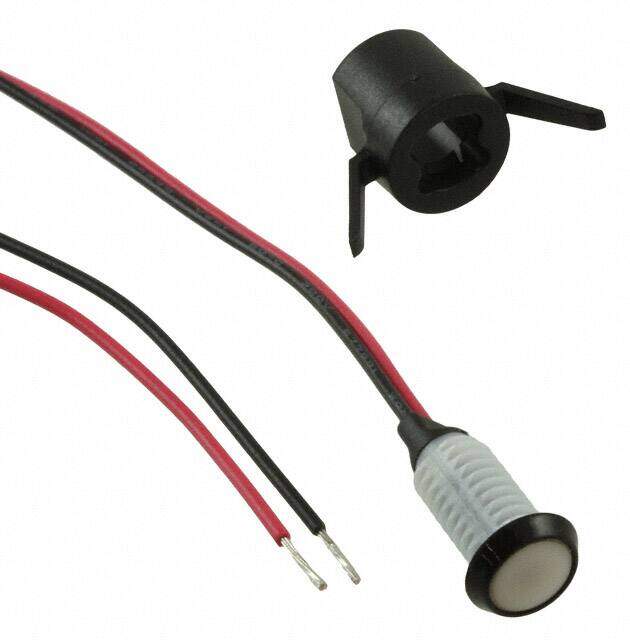

PM3-KPGDW12.0
RoHS
/
Package 120
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
PNL MNT GREEN 20MA W/WIRE: 12"
PDF
/
Inventory: 1795
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Panel
Package / Case 120
Panel Cutout Shape Round
Technical
Series PM3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type LED
Color Green
Termination Style Wire Leads - 12 (304.80mm)
Operating Supply Voltage 2.2V
Panel Cutout Dimensions 0.19 (4.83mm)
Voltage 2.2V
Current 20mA
Viewing Angle 120°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 5.90mm Dia
Forward Voltage 2.2V
Luminous Intensity 20 mcd
Millicandela Rating 20mcd
Illumination Color Green
Lens Transparency Diffused
Wavelength - Peak 555nm
Lens Color White
Wavelength 555 nm
Lamp Color Green
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Vf (Typ), If (Max)
