QS83XXR24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

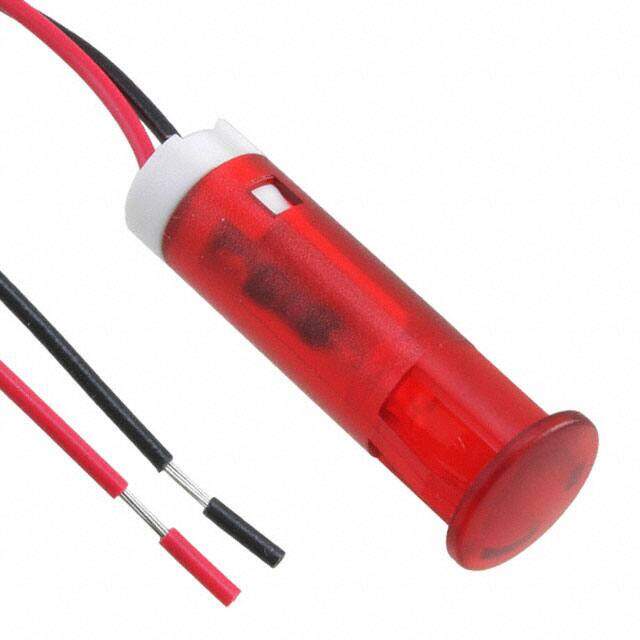

LED Indicator;8mm;Plastic;Snap-In;Panel Mount;Fixed;Red;24VDC;Wire
PDF
/
Buying Options
Total Price: USD $5.83
Unit Price: USD $5.8344
≥1 USD $5.8344
≥10 USD $4.12456
≥100 USD $3.378496
≥500 USD $2.612447
Inventory: 167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Snap in
Material PC, Polycarbonate
Panel Cutout Shape Round
Technical
Series QS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type LED
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Voltage - Rated 24V
HTS Code 8541.40.20.00
Current Rating 20mA
Termination Style Wire Leads - 7.87 (200.00mm)
Panel Cutout Dimensions 0.315 (8.00mm)
Viewing Angle 30°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 10.00mm Dia
Forward Voltage 2V
Luminous Intensity 25 mcd
Lens Transparency Diffused
Lamp Color Red
Dimensions
Length 28mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings DC
