QS81XXO12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

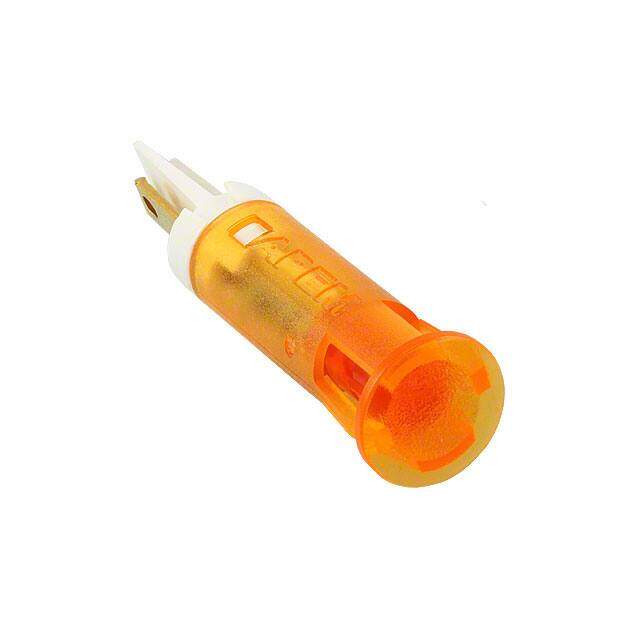

LED Indicator;8mm;Plastic;Snap-In;Panel Mount;Fixed;Orange;12VDC;Solder
PDF
/
Buying Options
Total Price: USD $4.72
Unit Price: USD $4.717785
≥1 USD $4.717785
≥10 USD $4.450738
≥100 USD $4.198812
≥500 USD $3.961143
≥1000 USD $3.736925
Inventory: 2533
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 38mm
Technical
Lamp Color Orange
Lens Transparency Diffused
Luminous Intensity 30 mcd
Forward Voltage 2V
Lens Size 10.00mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Viewing Angle 30°
Panel Cutout Dimensions 0.315 (8.00mm)
Termination Style Solder Lug
Current Rating 20mA
HTS Code 8541.40.20.00
Voltage - Rated 12V
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Type LED
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series QS
Physical
Panel Cutout Shape Round
Material PC, Polycarbonate
Mount Snap in
Supply Chain
Factory Lead Time 15 Weeks
